유압 파일함마 사양

유압
파일함마

BRUCE 유압파일 해머

BRUCE 유압 파일 해머 Bruce는 23년 이상의 업력을 보유한 유압 파일 장비, 유압 바이브로 함마 제조 기술 기업으로 "맞춤형 해머" "효율적인 설계" "경쟁력있는 가격"을 100개국 이상에 수출 제공하고 있습니다.

세계가 인정하는 브루스 파일 해머는 혹독한 건설현장에서 강력한 생존성을 보장하고 다양한 건설 현장에서 고객의 자원 효율과 강력한 시스템 운용성을 보장합니다.

프로젝트 환경과 고객사의 요청에 따라 다양한 말뚝 구동 애플리케이션, 높은 에너지 효율, 전기 및 유압 항타 시스템의 신뢰성, 다양한 항타기 장착 및 맞춤형 제품을 설계, 제공합니다.

유압 파일함마

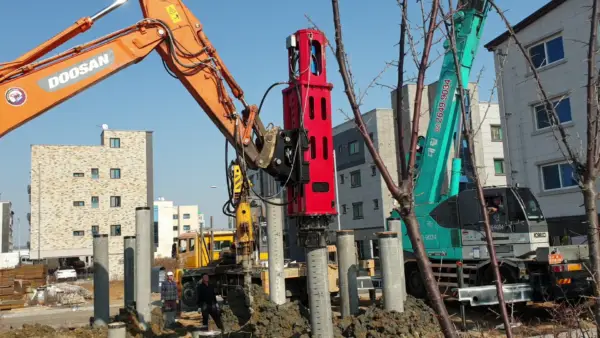

hydraulic-impact-pile-hammer-bruce-sgh-0212m-excavator-mount-pile-hammer

BRUCE SGH-0212 Pile Hammer (Max. Potential Energy : 2.4 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
2.4 ton.m 40 ~ 60 230 bar 100 lpm 4,300 kg PQ-150
17,359 lbs.ft / 24 kNm 40 ~ 60 3,337 psi 26 gpm 9,480 lbs PQ-150

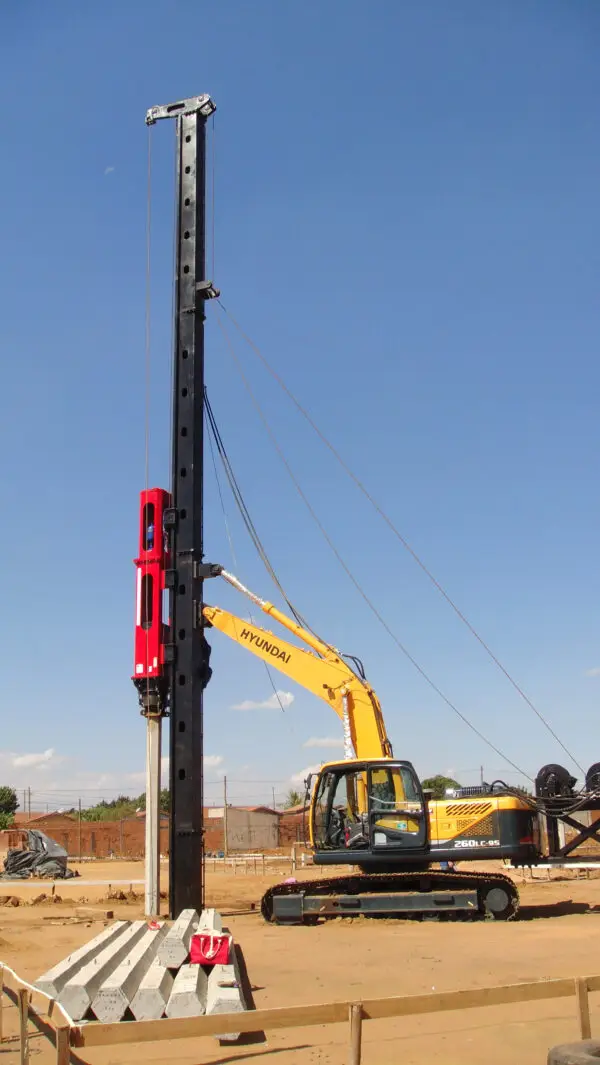

excavator mounted Hammer SGH-0312

BRUCE SGH-0312 Piling Hammer (Max. Potential Energy : 3.6 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
3.6 ton.m 40 ~ 60 230 bar 100 lpm 5,600 kg PQ-150
26,038 lbs.ft / 35.3 kNm 40 ~ 60 3,337 psi 26 gpm 12,346 lbs PQ-150
Hydraulic Impact Pile Hammer-SGH-0315-hammer

BRUCE SGH-0315 Impact Hammer (Max. Potential Energy : 4.5 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
4.5 ton.m 36 ~ 60 230 bar 100 lpm 5,700 kg PQ-150
32,549 lbs.ft / 44 kNm 36 ~ 60 3,337 psi 26 gpm 12,566 lbs PQ-150

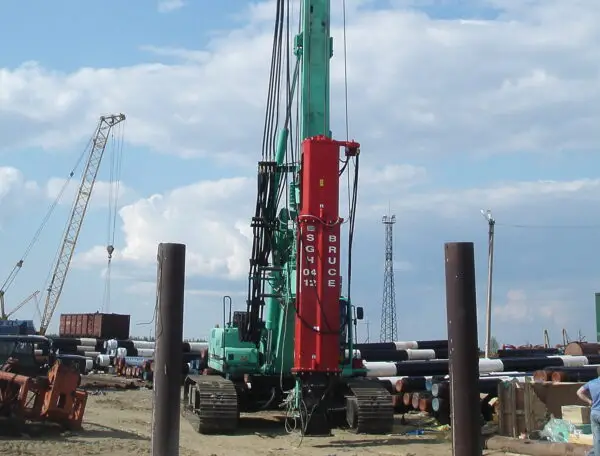

hydraulic-piling-hammer-pile-hammer-bruce-sgh-0412 mount on piling rig

BRUCE SGH-0412 Piling Hammer (Max. Potential Energy : 4.8 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
4.8 ton.m 40 ~ 60 230 bar 123 lpm 7,000 kg PQ-150
34,718 lbs.ft / 47 kNm 40 ~ 60 3,337 psi 33 gpm 15,432 lbs PQ-150

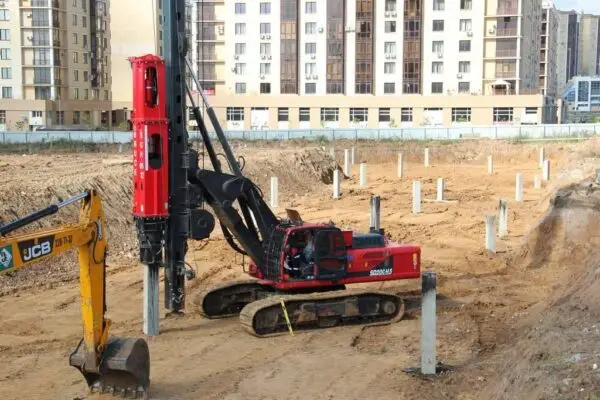

hydraulic-pile-hammer-Bruce-SGH-0512-hydraulic-impact-pile-hammer

BRUCE SGH-0512 Pile Hammer (Max. Potential Energy : 6.0 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
6.0 ton.m 40 ~ 60 230 bar 190 lpm 9,500 kg PQ-200
43,397 lbs.ft / 59 kNm 40 ~ 60 3,337 psi 50 gpm 20,944 lbs PQ-200

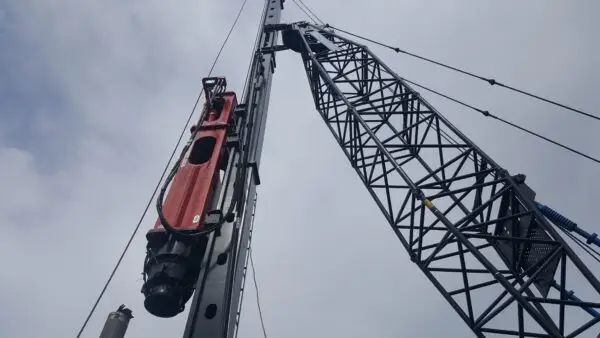

pile hammer-brcue SGH-0712-impact pile hammer

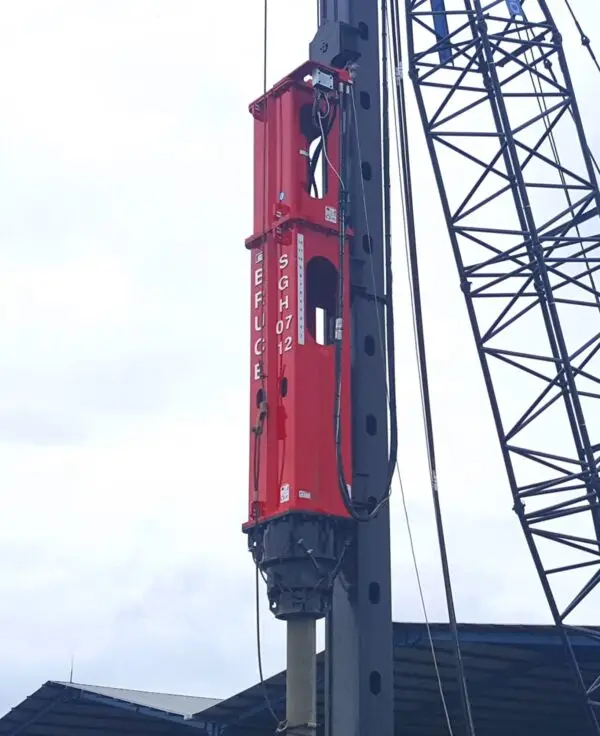

impact pile hammer-bruce sgh-0712-piling hammer

BRUCE SGH-0712 Impact Hammer (Max. Potential Energy : 8.4 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
8.4 ton.m 40 ~ 60 230 bar 190 lpm 12,500 kg PQ-200
60,756 lbs.ft / 83 kNm 40 ~ 60 3,337 psi 50 gpm 27,558 lbs PQ-200

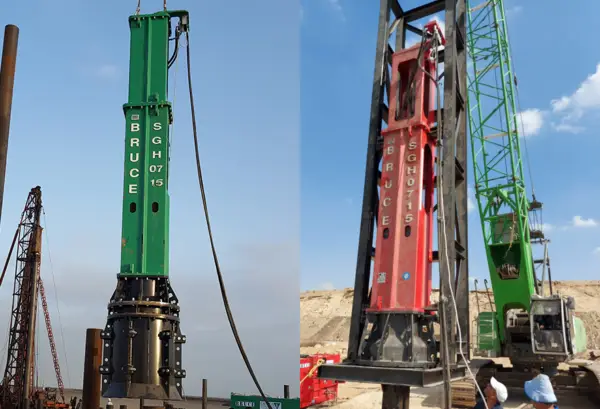

Hydraulic Impact Pile Hammer-SGH-0715-hammer

BRUCE SGH-0715 Pile Hammer (Max. Potential Energy : 10.5 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
10.5 ton.m 38 ~ 60 230 bar 230 lpm 13,000 kg PQ-250
75,946 lbs.ft / 103 kNm 38 ~ 60 3,337 psi 61 gpm 28,660 lbs PQ-250

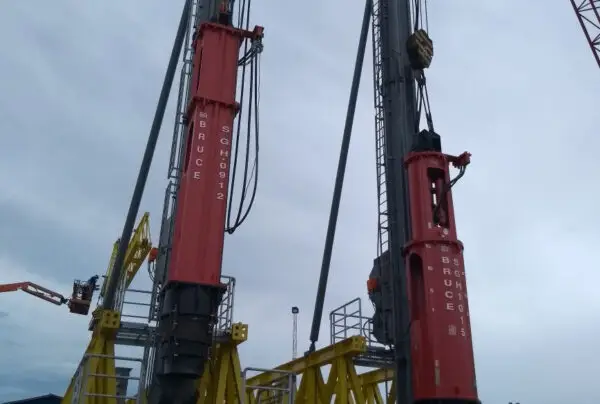

pile-hammer-bruce-sgh-0712

BRUCE SGH-0912 Piling Hammer (Max. Potential Energy : 10.8 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
10.8 ton.m 38 ~ 60 250 bar 260 lpm 17,000 kg PQ-250
78,116 lbs.ft / 106 kNm 38 ~ 60 3,627 psi 69 gpm 37,479 lbs PQ-250

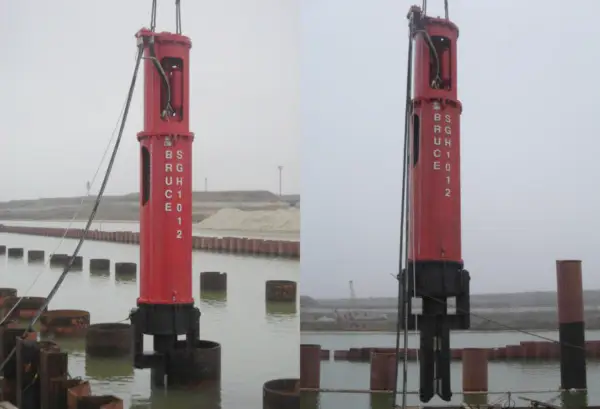

Hydraulic Impact Pile Hammer-SGH-1012-hammer

BRUCE SGH-1012 Pile Hammer (Max. Potential Energy : 12 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
12 ton.m 38 ~ 60 250 bar 260 lpm 18,500 kg PQ-250
86,794 lbs.ft / 118 kNm 38 ~ 60 3,627 psi 69 gpm 40,786 lbs PQ-250
hydraulic-pile-hammer-pile-driving-hammer-bruce-sgh-1015

BRUCE SGH-1015 Impact Hammer (Max. Potential Energy : 15 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Power Pack
15 ton.m 35 ~ 60 250 bar 296 lpm 19,000 kg PQ-250
108,514 lbs.ft / 147 kNm 35 ~ 60 3,627 psi 78 gpm 41,888 lbs PQ-250
