BRUCE Base Mount
Piling Hammer

Base Mounted Pile hammer Specification

BRUCE Base Mount Piling Hammer supply high versatility kit such as Bruce hydraulic pile hammer, leader, winches and others necessary accessory for the existing excavator, crane or piling rig as BRUCE of one of the world’s leading supplier of hydraulic pile hammer. It is cost effective concept multi-purpose designed as additional power pack is not required

The EXCAVATOR MOUNTED PILING RIG with completely original concept in Excavator Mounted Piling Rig equipment industries has been manufactured by BRUCE of one of the world leading supplier of hydraulic pile hammer.
It is a multi-purpose rig designed for piling works in confined area.

BRUCE’s unique base mount attachment and pile hammer will fulfill the needs for those people who are reluctant to purchase a high cost conventional piling rig. If you apply all of the BRUCE concepts here, your work will enjoy the powerful competitive advantage that making a great Profit on working site..

Base Mounted Pile Hammer

Impact Pile Hammer - BRUCE SGH-0112 Piling Hammer

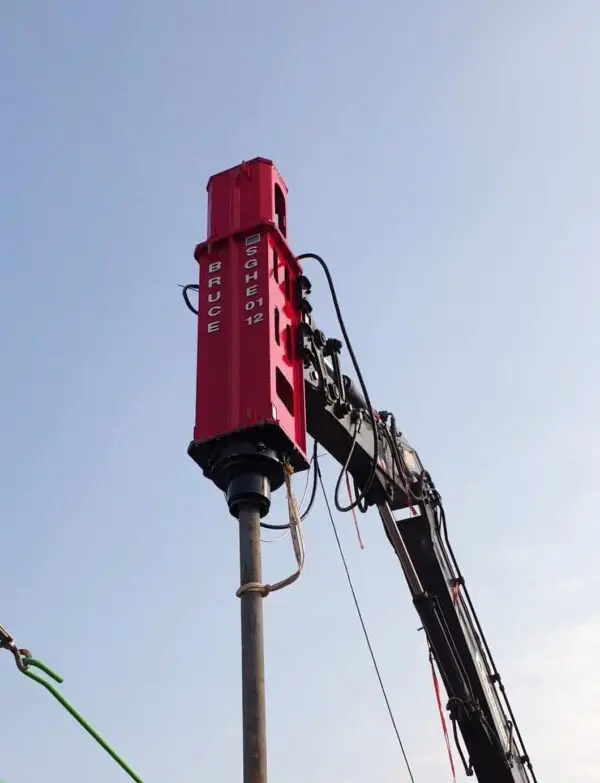

BRUCE SGH-0112 (Max. Potential Energy: 1.2 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Excavator
1.2 ton.m 42 ~ 60 150 bar 80 lpm 3,300 kg 20 to 26 ton
8,680 lbs.ft / 12 kNm 42 ~ 60 2,176 psi 21 gpm 7,275 lbs 20 to 26 ton
Impact Pile Hammer - BRUCE SGH-0212

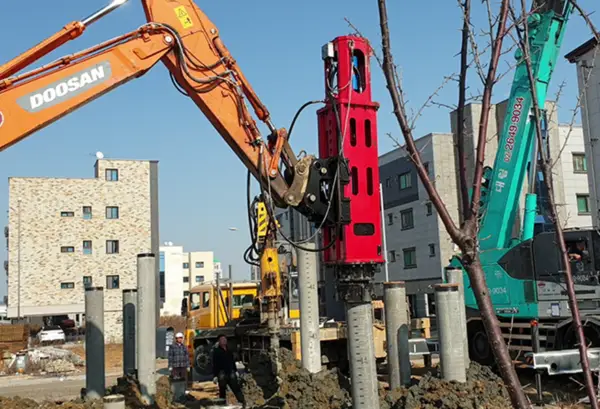

BRUCE SGH-0212 (Max. Potential Energy: 2.4 ton.m)

Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Excavator
2.4 ton.m 40 ~ 60 230 bar 100 lpm 4,300 kg 20 to 26 ton
17,359 lbs.ft / 24 kNm 40 ~ 60 3,337 psi 26 gpm 9,480 lbs 20 to 26 ton
Excavator Mounted Impact Pile Hammer - BRUCE SGH-0312

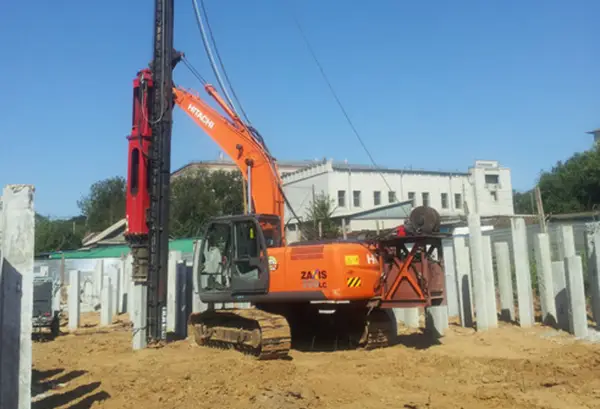

BRUCE SGH-0312 (Max. Potential Energy: 3.6 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Excavator
3.6 ton.m 40 ~ 60 230 bar 100 lpm 5,600 kg 20 to 30 ton
26,038 lbs.ft / 35.3 kNm 40 ~ 60 3,337 psi 26 gpm 12,346 lbs 20 to 30 ton

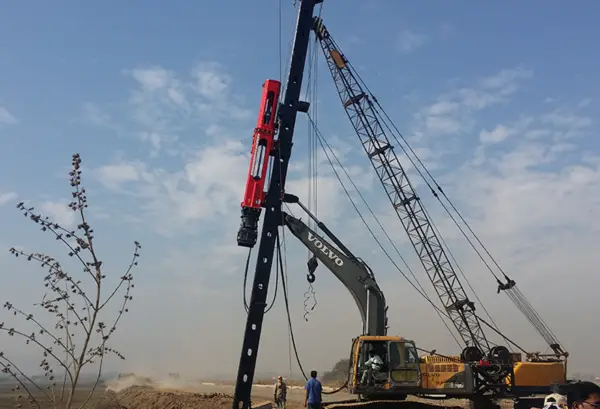

Hydraulic Impact Pile Hammer - BRUCE SGH-0315

BRUCE SGH-0315 (Max. Potential Energy: 4.5 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Excavator
4.5 ton.m 36 ~ 60 230 bar 100 lpm 5,700 kg 26 to 30 ton
32,549 lbs.ft / 44 kNm 36 ~ 60 3,337 psi 26 gpm 12,566 lbs 26 to 30 ton
Pile Hammer - BRUCE SGH-0312

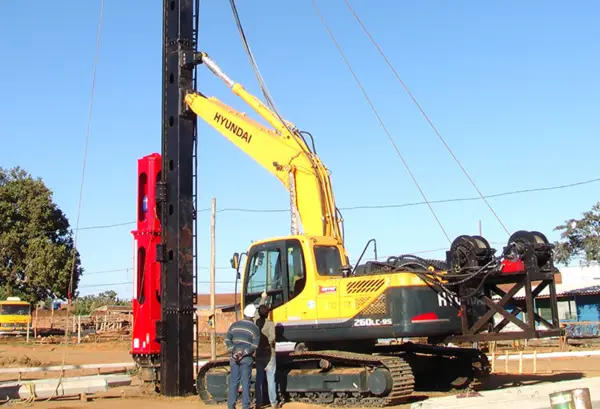

BRUCE SGH-0412 (Max. Potential Energy: 4.8 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Excavator
4.8 ton.m 40 ~ 60 230 bar 123 lpm 7,000 kg 28 to 36 ton
34,718 lbs.ft / 47 kNm 40 ~ 60 3,337 psi 33 gpm 15,432 lbs 28 to 36 ton
Pile Hammer - BRUCE SGH-0315

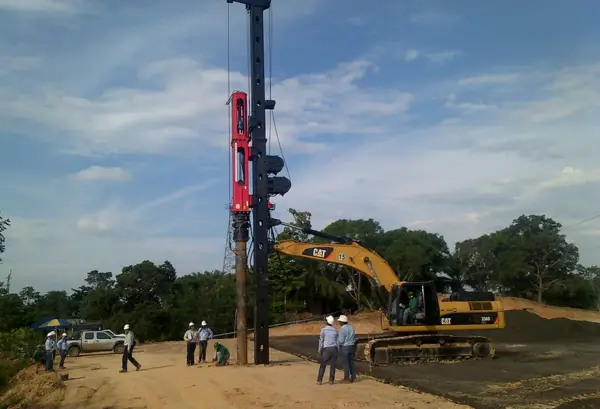

BRUCE SGH-0415 (Max. Potential Energy: 6 ton.m)

Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Excavator
6 ton.m 40 ~ 60 230 bar 123 lpm 7,000 kg 28 to 36 ton
34,718 lbs.ft / 47 kNm 40 ~ 60 3,337 psi 33 gpm 15,432 lbs 28 to 36 ton
Impact Pile Hammer - BRUCE SGH-0512

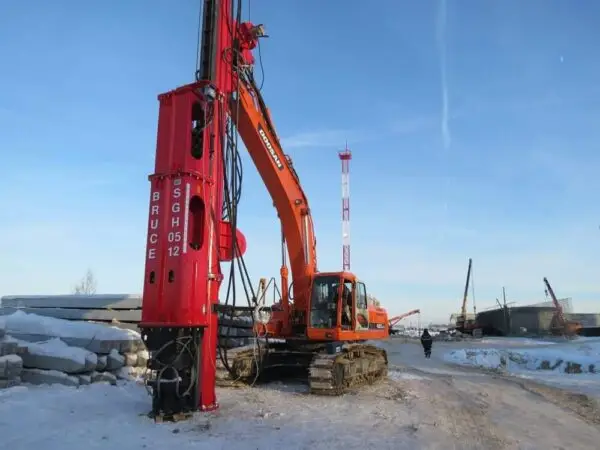

BRUCE SGH-0512 (Max. Potential Energy: 6 ton.m)

Max. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Excavator
6.0 ton.m 40 ~ 60 230 bar 190 lpm 9,500 kg 36 to 40 ton
43,397 lbs.ft / 59 kNm 40 ~ 60 3,337 psi 50 gpm 20,944 lbs 36 to 40 ton
Pile Hammer - BRUCE Excavator Mounted Impact Pile Hammer

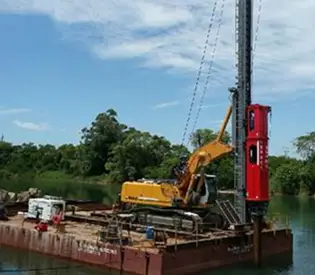

BRUCE SGH-0712 (Max. Potential Energy: 8.4 ton.m)

ax. Potential Energy bpm Operating Pressure Required    Flow Rate Wieght with Drive Cap Suitable Excavator
8.4 ton.m 40 ~ 60 230 bar 190 lpm 12,500 kg 45 to 50 ton
60,756 lbs.ft / 83 kNm 40 ~ 60 3,337 psi 50 gpm 27,558 lbs 45 to 50 ton
