BRUCE • Driving-system interfaces

Check the cap and cushions between the hammer and pile

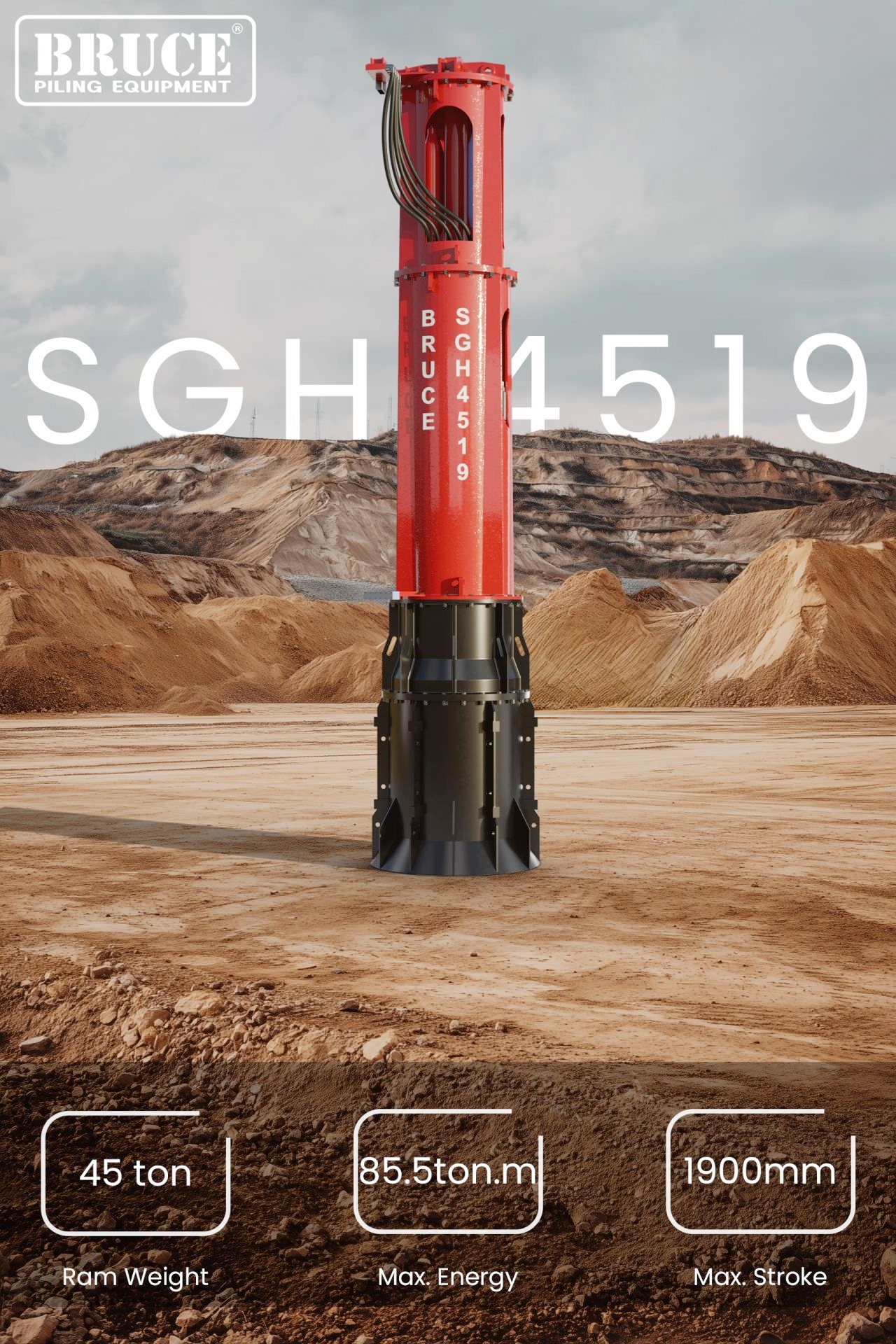

A hydraulic impact hammer works through a driving assembly. The cap or helmet, applicable cushions and pile-head interface are part of that assembly, not incidental accessories to be selected after the hammer.

Understanding their different roles helps project teams describe the system being proposed, inspect the supplied components and keep changes traceable.

Three terms that should not be used interchangeably

Interface component

Pile cap or helmet

In pile-driving equipment terminology, the cap or helmet forms part of the interface between the hammer and the pile. Its fit and configuration need to suit the pile section and the approved driving assembly.

This driving cap is different from the structural pile cap that connects completed foundation piles to the structure.

Hammer-side cushioning

Hammer cushion

A hammer cushion, where required by the design, is a specified element of the hammer-side driving assembly. Its properties affect the response of that system and should follow the approved equipment and project documentation.

It is not a generic pad that can be replaced with any material of similar thickness.

Pile-side cushioning

Concrete pile cushion

A pile cushion may be specified between a concrete pile head and the driving cap to distribute the impact and manage stresses. Its location and function differ from those of the hammer cushion.

Confirm the material, dimensions, condition criteria and replacement requirements for the actual pile and approved assembly.

Use a drawing to remove ambiguity

Names vary between equipment documents and project specifications. Ask for an assembly drawing that identifies the components from the hammer interface to the pile head. Match the drawing to the parts list and the proposed pile section.

For the technical review, identify the exact cap, cushion arrangement and relevant material properties. Do not use a general product photograph to infer the internal stack or assume that similarly named components are interchangeable.

Useful clarification: “Please identify the hammer cushion and the concrete pile cushion separately on the drawing, and confirm which components are included in the supplied package.” This resolves a more specific question than asking whether “a cushion” is included.

Review the components as part of the driving system

Impact energy is transmitted through an interacting system. Changes to the cap or cushions can change that response, so the project team should consider them in the applicable driving-system evaluation rather than reviewing the hammer rating alone.

The FHWA driven-pile construction inspection checklist explicitly includes checks on the hammer, helmet and cushions. It provides a useful reference for organizing an inspection discussion; the contract and approved project documents determine the requirements for your work.

Where a wave-equation analysis or another project evaluation is required, the responsible engineer should determine the appropriate system inputs and how a configuration change affects the review. A supplier’s accessory description is not that analysis.

A documentation checklist for caps and cushions

On smaller screens, swipe or scroll horizontally to view the full table.

Suggested items to align before equipment acceptance and use.
RecordWhat to identifyWhy it helps
Assembly identificationHammer model, cap/helmet identification and drawing revision.Connects the installed parts to the reviewed arrangement.
Pile interfacePile section, head dimensions and specified contact detail.Allows the fit to be checked against the actual pile.
Cushion specificationComponent location, material, dimensions and applicable requirements.Distinguishes hammer-side and pile-side components.
Condition criteriaInspection and replacement requirements from approved documents.Avoids relying on an arbitrary universal replacement interval.
Change recordWhat changed, when, why and the applicable review reference.Keeps installation records linked to the actual system.

Keep replacement and installation records connected

When a specified component is replaced, record the pile identification or work stage associated with the change. This helps the project team interpret the installation record with knowledge of the equipment configuration in use.

If the proposed replacement changes a material, dimension or assembly detail, obtain the required technical review before treating it as equivalent. Follow the equipment instructions and project process for access, isolation and inspection; this guide does not provide a replacement procedure.

Do not publish a single cushion thickness, service life or replacement count as suitable for every pile. Those values depend on the approved system, materials, condition and project requirements.

Common cap and cushion questions

Is a concrete pile cushion the same as the hammer cushion?

No. They occupy different roles in the assembly. Identify each one on the equipment drawing and confirm which is required for the actual system.

Does every pile material use the same arrangement?

No. Review the pile material, cross-section and applicable system documentation. An arrangement for a concrete pile should not be copied to a steel pile without review.

Can a different cap be used if it appears to fit?

Appearance alone is insufficient. Confirm the component’s suitability, dimensions and effect on the approved driving system before substitution.

Discuss the complete BRUCE driving interface

Provide the hammer model, pile drawing and any project requirements for caps and cushions. Ask for the assembly identification, supplied scope and relevant documentation.
