The BRUCE power packs have been designed and manufactured to optimize the hydraulic system for a constant stability of the piling performance with high efficiency of operations for BRUCE hydraulic impact piling hammers, vibro hammers, rotary head and others custom-made power pack
A sound proofed frame style with heavy steel enclosure and enough space of inside layout enables to obtain an easy access for quick maintenance and ensures durability of power pack.
Maximum efficiency and reliability ensured by BRUCE optimised hydraulic system. Equipped with reputable quality hydraulic pump and valves.
High cooling capacity of hydraulic system provides a stable high efficiency of hydraulic systems and together with oversized radiator ensures no overheat problems
Power Pack

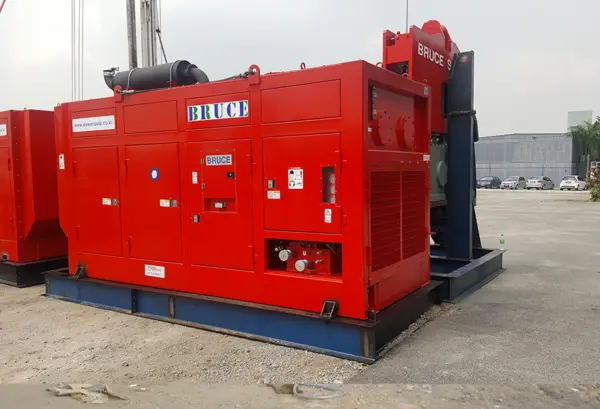

PQ-500V for BRUCE Vibratory Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Vibro |
| 475 HP | 1,800 rpm | 320 bar | 600 lpm | 3,500x1,800x2,100 mm | 5,800 kg | SGV-400 |
| 354 kW | 1,800 rpm | 4,641 psi | 159 gpm | 11.5x5.9x6.9 ft | 12,787 lbs | SGV-400 |

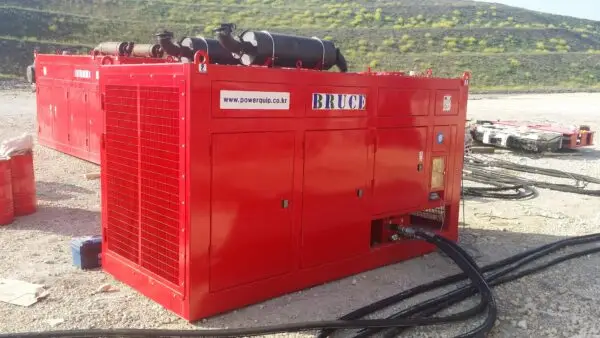

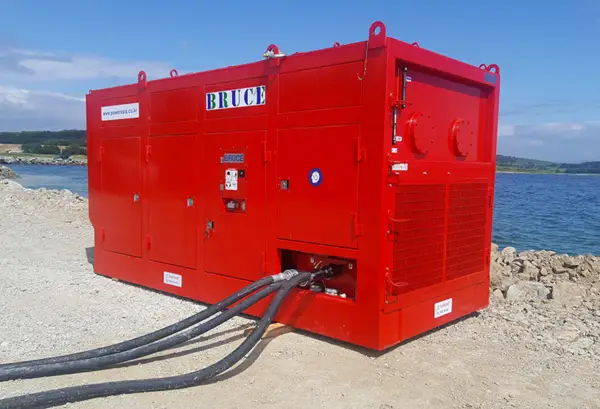

PQ-600 for BRUCE Pile Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Hammer |
| 525 HP | 1,800 rpm | 300 bar | 700 lpm | 4,000x1,900x2,265 mm | 6,800 kg | |
| 392 kW | 1,800 rpm | 4,352 psi | 185 gpm | 13.1x6.2x7.4 ft | 14,991 lbs |
PQ-600V for BRUCE Vibratory Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Vibro |
| 525 HP | 1,800 rpm | 320 bar | 630 lpm | 3,500x1,800x2,200 mm | 6,600 kg | SGV-450 |
| 392 kW | 1,800 rpm | 4,641 psi | 166 gpm | 11.5x5.9x7.2 ft | 14,551 lbs | SGV-450 |
PQ-700 for BRUCE Pile Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Hammer |
| 650 HP | 1,800 rpm | 300 bar | 880 lpm | 4,000x1,900x2,265 mm | 7,300 kg | |
| 485 kW | 1,800 rpm | 4,352 psi | 233 gpm | 13.1x6.2x7.4 ft | 16,094 lbs |

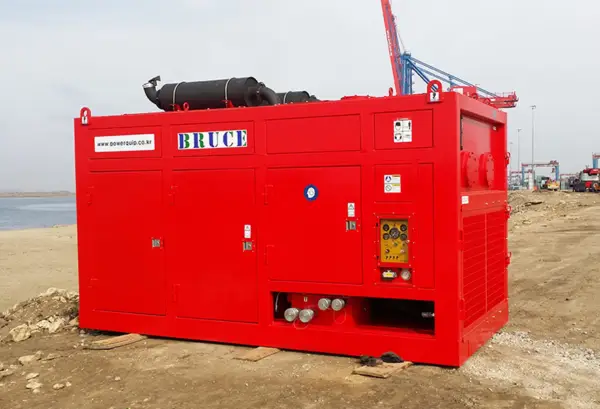

PQ-800 for BRUCE Pile Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Hammer |
| 800 HP | 1,800 rpm | 300 bar | 1,100 lpm | 4,600x2,200x2,459 mm | 9,500 kg | |
| 597 kW | 1,800 rpm | 4,352 psi | 291 gpm | 15x7.2x8.1 ft | 20,944 lbs |

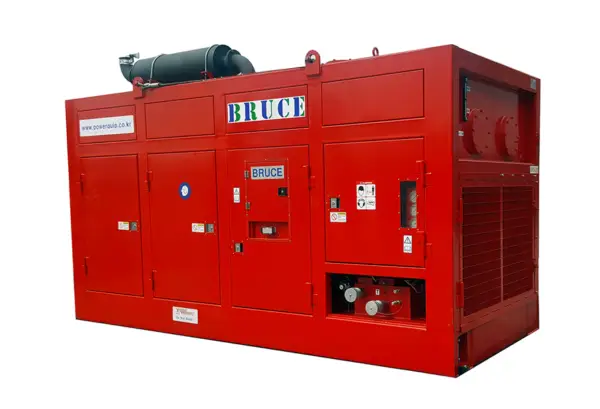

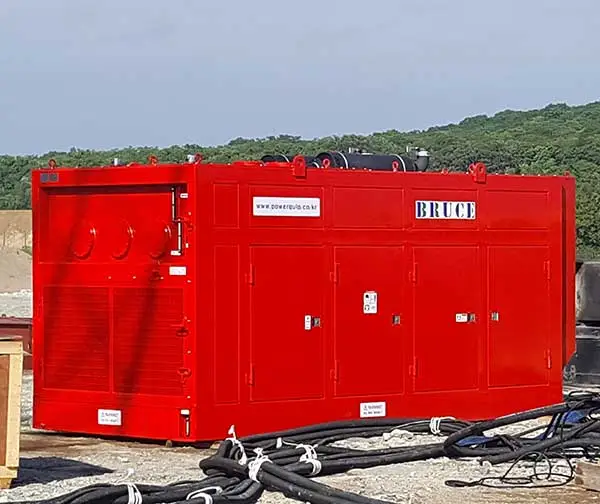

PQ-800V for BRUCE Vibratory Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Vibro |
| 650 HP | 1,800 rpm | 320 bar | 764 lpm | 3,800x2,000x2,200 mm | 8,200 kg | SGV-600 |
| 485 kW | 1,800 rpm | 4,641 psi | 202 gpm | 12.6x6.7x7.2 ft | 18,078 lbs | SGV-600 |

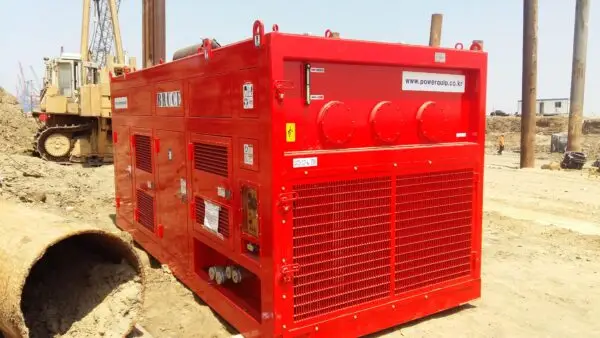

PQ-1000 for BRUCE Pile Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Hammer |
| 1,000 HP | 1,800 rpm | 300 bar | 1,250 lpm | 5,000x2,200x2,600 mm | 10,000 kg | |
| 736 kW | 1,800 rpm | 4,352 psi | 330 gpm | 16.4x7.2x8.5 ft | 22,046 lbs |

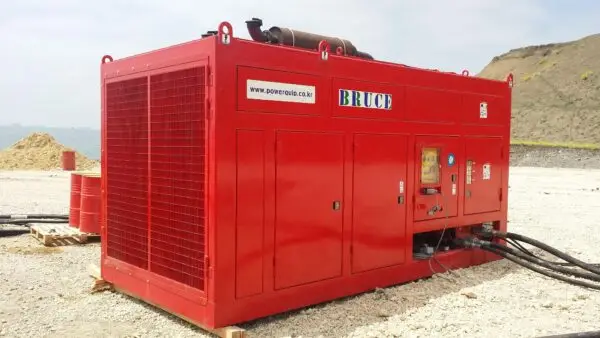

PQ-1000V for BRUCE Vibratory Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Vibro |
| 1,000 HP | 1,800 rpm | 320 bar | 1,100 lpm | 3,800x2,200x2,200 mm | 10,000 kg | SGV-1000 |
| 746 kW | 1,800 rpm | 4,641 psi | 291 gpm | 12.6x7.2x7.2 ft | 22,046 lbs | SGV-1000 |
PQ-1200 for BRUCE Pile Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Hammer |
| 1,300 HP | 1,800 rpm | 300 bar | 1,600 lpm | 5,500x2,500x2,700 mm | 14,000 kg | |
| 974 kW | 1,800 rpm | 4,352 psi | 352 gpm | 18x8.2x8.9 ft | 30,865 lbs |
PQ-1500 for BRUCE Pile Hammer
| Engine Power | Engine Speed | Setting Pressure | Max. Flow Rate | Size (LxWxH) | Wieght (Operating) | Suitable Hammer |
| 1,500 HP | 1,800 rpm | 300 bar | 2,000 lpm | 5,500x2,500x2,700 mm | 17,000 kg | |
| 1,119 kW | 1,800 rpm | 4,352 psi | 528 gpm | 18x8.2x8.9 ft | 37,479 lbs |
