The Bruce power packs have been designed and manufactured to optimize the hydraulic system for a constant stability of the piling performance with high efficiency of operations for Bruce hydraulic impact piling hammers, vibro hammers, rotary head and others custom-made power pack

A sound proofed frame style with heavy steel enclosure and enough space of inside layout enables to obtain an easy access for quick maintenance and ensures durability of power pack.

Maximum efficiency and reliability ensured by Bruce optimised hydraulic system. Equipped with reputable quality hydraulic pump and valves.

High cooling capacity of hydraulic system provides a stable high efficiency of hydraulic systems and together with oversized radiator ensures no overheat problems

Power Pack

bruce-vibratory-hammer-power-pack-2000

PQ-150 for BRUCE Pile Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Hammer
120 HP 1,800 rpm 280 bar 150 lpm 2,700x1,300x2,060 mm 3,500 kg
89 kW 1,800 rpm 4,061 psi 40 gpm 8.9x4.3x6.8 ft 7,716 lbs
bruce-vibratory-hammer

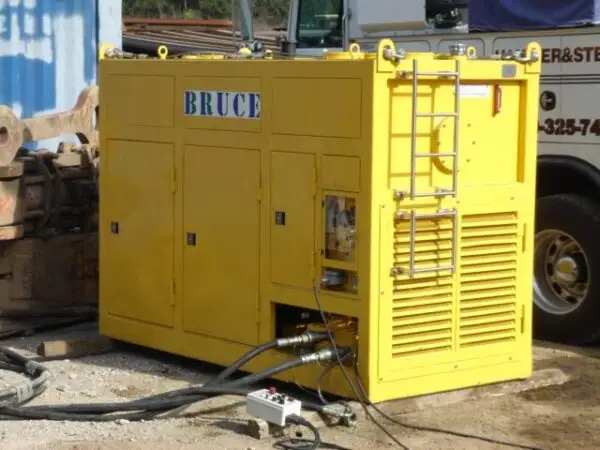

PQ-200 for BRUCE Pile Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Hammer
154 HP 1,800 rpm 280 bar 195 lpm 2,700x1,300x2,060 mm 4,000 kg
115 kW 1,800 rpm 4,061 psi 52 gpm 8.9x4.3x6.8 ft 8,819 lbs
bruce-vibratory-hammer-power-pack200

PQ-200V for BRUCE Vibratory Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Vibro
180 HP 1,800 rpm 320 bar 190 lpm 2,500x1,300x1,850 mm 4,100 kg SGV-80
132 kW 1,800 rpm 4,641 psi 50 gpm 8.2x4.3x6.1 ft 9,039 lbs SGV-80
bruce-vibratory-hammer-power-pack250

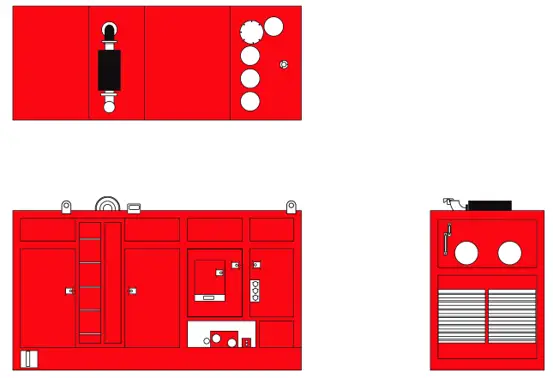

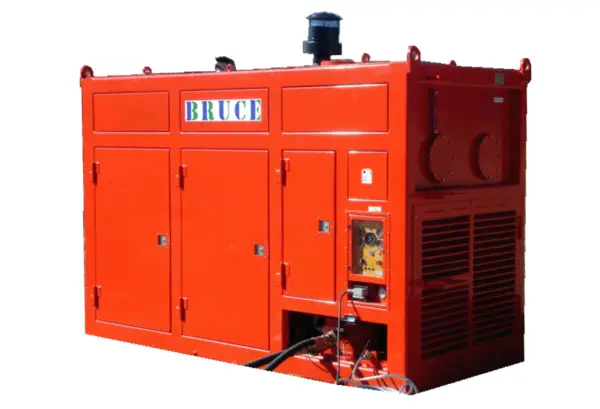

PQ-250 for BRUCE Pile Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Hammer
230 HP 1,800 rpm 280 bar 325 lpm 2,900x1,600x2,100 mm 4,400 kg
172 kW 1,800 rpm 4,061 psi 86 gpm 9.5x5.3x6.9 ft 9,700 lbs
bruce-vibratory-hammer-power-pack250

PQ-250V for BRUCE Vibratory Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Vibro
230 HP 1,800 rpm 320 bar 280 lpm 2,900x1,600x2,100 mm 4,400 kg SGV-100
172 kW 1,800 rpm 4,641 psi 74 gpm 9.5x5.3x6.9 ft 9,700 lbs SGV-100
bruce-vibratory-hammer-power-pack300

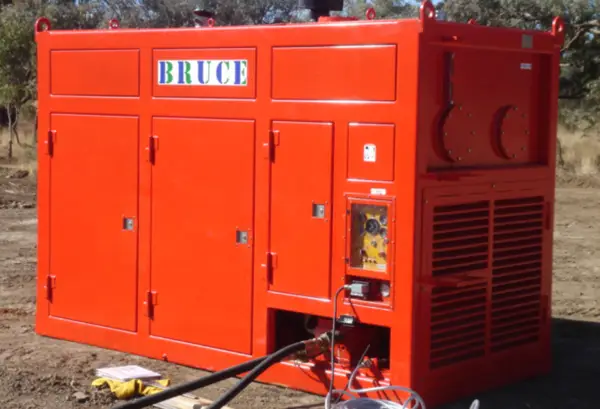

PQ-300 for BRUCE Pile Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Hammer
290 HP 1,800 rpm 280 bar 400 lpm 3,300x1,600x2,100 mm 5,000 kg
216 kW 1,800 rpm 4,061 psi 106 gpm 10.8x5.3x6.9 ft 11,023 lbs
bruce-vibratory-hammer-power-pack-98

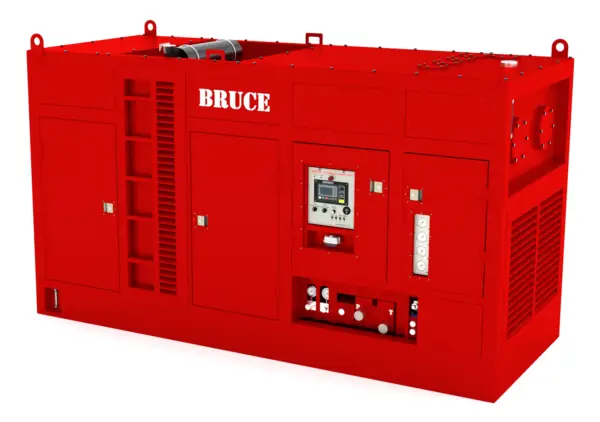

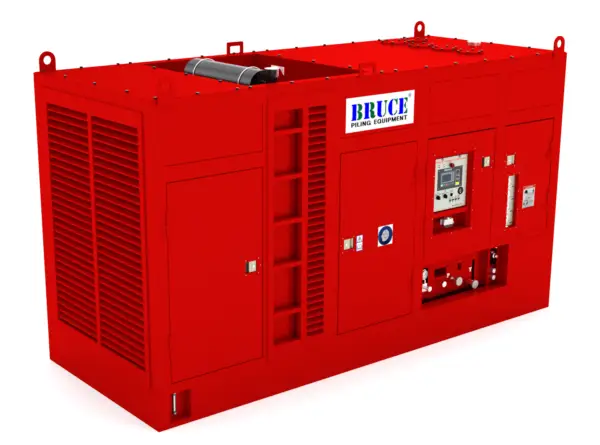

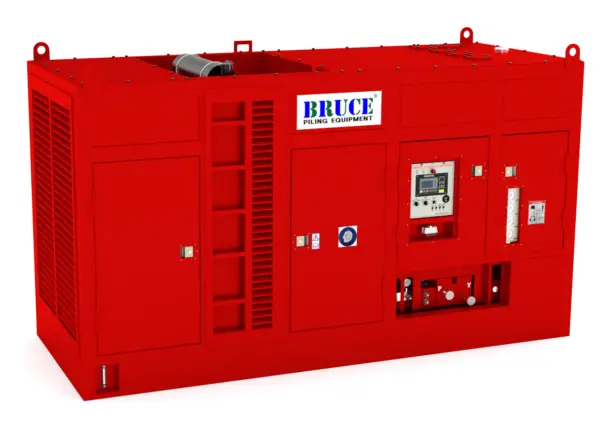

PQ-350V for BRUCE Vibratory Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Vibro
320 HP 1,800 rpm 320 bar 400 lpm 3,300x1,600x2,100 mm 5,400 kg SGV-200/SGV-300
239 kW 1,800 rpm 4,641 psi 106 gpm 10.8x5.3x6.9 ft 11,905 lbs SGV-200/SGV-300
bruce-vibratory-hammer-power-pack11

PQ-400 for BRUCE Pile Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Hammer
360 HP 1,800 rpm 300 bar 450 lpm 3,500x1,800x2,200 mm 5,500 kg
269 kW 1,800 rpm 4,352 psi 119 gpm 11.5x5.9x7.2 ft 12,125 lbs
bruce-vibratory-hammer-power-pack450

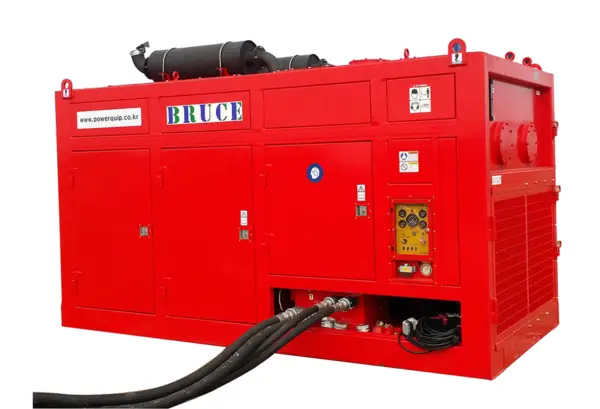

PQ-450 for BRUCE Pile Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Hammer
425 HP 1,800 rpm 300 bar 500 lpm 3,700x1,800x2,480 mm 6,000 kg
317 kW 1,800 rpm 4,352 psi 132 gpm 12.1x5.9x8.1 ft 13,228 lbs
bruce-vibratory-hammer-power-pack500

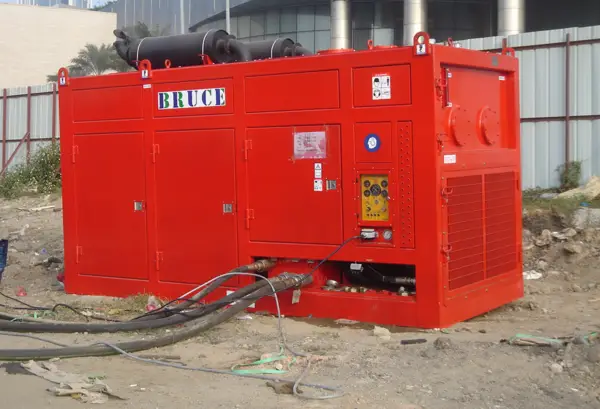

PQ-500 for BRUCE Pile Hammer

Engine Power Engine Speed Setting Pressure Max.    Flow Rate Size (LxWxH) Wieght (Operating) Suitable Hammer
475 HP 1,800 rpm 300 bar 540 lpm 3,700x1,800x2,480 mm 6,000 kg
354 kW 1,800 rpm 4,352 psi 143 gpm 12.1x5.9x8.1 ft 13,228 lbs
