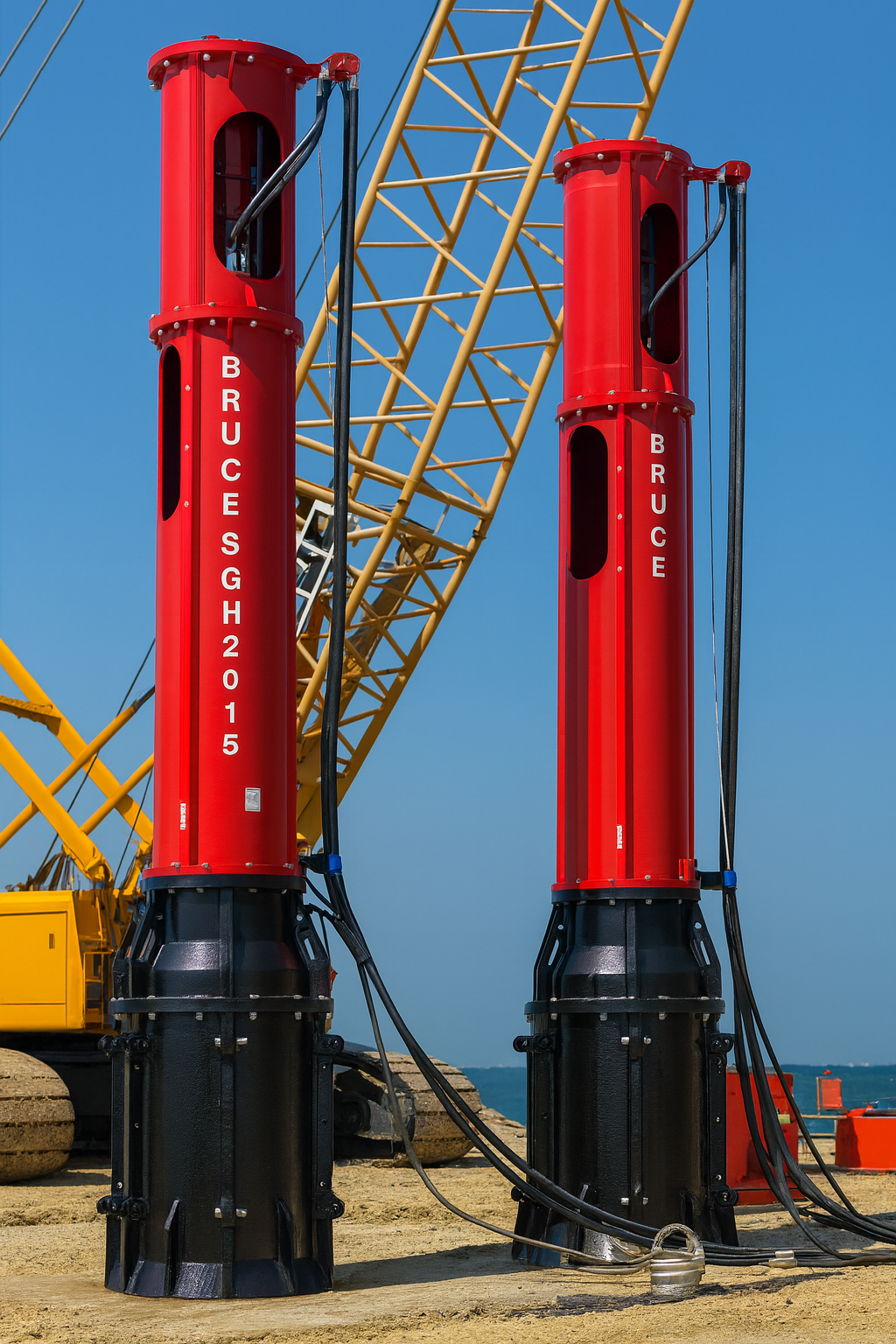

Hydraulic impact hammer specifications describe more than maximum energy. Review the rating basis, ram and assembly weights, blow rate, hydraulic supply and pile interface together.
This guide explains how to read the published BRUCE SGH specification tables and prepare a technical inquiry. For operating principles, start with how a hydraulic pile hammer works.
Identify what the energy figure represents
Ask whether a value describes rated potential energy, ram kinetic energy immediately before impact, or energy transferred into the pile. These quantities refer to different points in the driving process.
Energy units: 1 kN·m = 1 kJ. For U.S. customary units, 1 kJ is approximately 737.56 ft·lbf. Use ft·lbf for energy; lbf alone is a force unit.
For a ram moving at velocity v, kinetic energy is E = ½mv². In the simplified case of a gravity-only drop, ideal potential energy is E = mgh.
Illustration: a 5,000 kg ram raised 1.0 m has approximately 49.0 kJ of gravitational potential energy. This is an ideal calculation, not a measured transfer result or a BRUCE model rating. Use the manufacturer’s stated method for the actual hammer, including any powered downstroke.
Request the energy setting range and how the supplied monitoring system measures or derives its reading. Specify the units required in project records.
Compare selected BRUCE SGH specifications
The following examples reproduce selected published values. They illustrate how the fields differ between models and do not assign a model to a particular soil or pile.
Scroll sideways on smaller screens.
| Model | Max. potential energy | Blow rate | Required flow | Weight with drive cap | Listed power pack |
|---|---|---|---|---|---|
| SGH-0315 | 44 kN·m | 36–60 bpm | 100 L/min 26 gpm | 5,700 kg 12,566 lb | PQ-150 |
| SGH-0712 | 83 kN·m | 40–60 bpm | 190 L/min 50 gpm | 12,500 kg 27,558 lb | PQ-200 |
| SGH-1015 | 147 kN·m | 35–60 bpm | 296 L/min 78 gpm | 19,000 kg 41,888 lb | PQ-250 |
Source: BRUCE hydraulic pile hammer specifications. Values are rounded as published. “Weight with drive cap” is the specified assembly weight, not ram mass.
Request the operating pressure, drawing, mounting details and applicable operating range for the selected package. Confirm whether the quoted blow-rate range and maximum energy can be achieved together under the proposed supply conditions.
Review the parts that affect the complete setup
- Ram and stroke: request the actual ram mass, stroke range and energy control method.
- Drive cap and cushions: match the pile interface and obtain the component specifications used in the driving-system analysis.
- Mounting: identify the leader or suspension arrangement and request the corresponding assembly drawing.
- Hydraulics: confirm pressure, flow, return conditions, hose arrangement and the proposed power source.
- Handling weight: include the supplied cap, adapters and other components in the carrier or lifting review.
Have the project engineer review drivability, pile stresses and the proposed installation controls. Avoid treating a fixed ram-to-pile mass ratio as a guarantee against damage. Pile material, section, length, ground resistance and driving-system components also matter.
The FHWA driven pile foundation manual, Volume II (PDF) covers driving-system analysis and construction control.
Distinguish operating records from pile acceptance
The BRUCE features page describes the optional IEA system as recording blow energy. Ask for the current measurement method, calibration information, output format and limitations of the equipment proposed in your quotation.
ASTM D4945 high-strain dynamic testing uses measured pile response to impact. A hammer’s displayed energy is not, by itself, a measurement of foundation capacity. Specify the field testing and engineering interpretation required for the project.
For a useful technical handover, identify which readings come from the hammer controls, which come from separate instrumentation and who reviews each record.
Impact hammer specification FAQ
Does higher maximum energy always mean faster installation?
The useful operating range depends on the pile, ground, driving assembly and permitted stresses. Compare suitability for the actual sequence and the planned operating settings, as well as the maximum rating.
Can I calculate ram mass from the total hammer weight?
Request the ram mass directly. Assembly weight may include the housing, cap, cylinders and other components. It should not be substituted for ram mass in an energy calculation.
Why can two data sheets show slightly different converted numbers?
Published ratings and unit conversions may be rounded independently. Compare values in the same unit system and request the current certified or approved model data required by your project.
What information should accompany a model recommendation?
Ask for the selected configuration, current data sheet and drawing, required hydraulic supply, pile interface, assumed project inputs and any additional engineering checks. Confirm the package price separately.
Complete the technical review
Request current SGH model data
Send the pile drawing, ground investigation, planned mounting, required acceptance criteria and U.S. project location. Request the model data sheet, assembly drawing, hydraulic requirements, monitoring scope and recommended driving accessories.
