1. The Theoretical Physics of Soil Interaction and Liquefaction

At the core of foundational engineering, the primary challenge is overcoming the static skin friction and toe resistance of the strata. A vibratory hammer operates on the principle of harmonic soil liquefaction. By spinning eccentric weights in opposite directions at high velocities, the hammer generates a pure vertical centrifugal force that is transmitted through the pile. Horizontal force components cancel out. This oscillation causes the soil particles in the immediate vicinity of the pile to vibrate rapidly — temporarily neutralizing the effective stress between particles. As the soil enters a quasi-fluid state, the pile sinks under its own combined weight and the static down-force of the host machine.

This vibratory method is exceptionally efficient in non-cohesive soils such as granular sands and silts. In these environments, the vibration disrupts the interlocking of grains — allowing the pile to displace material with minimal resistance. However, the efficiency of liquefaction decreases as the plasticity index of the soil increases. In cohesive clays, the damping effect of the material absorbs the harmonic energy — making it difficult to achieve the required penetration depth without excessive heat build-up in the eccentrics. The Remote Control Pendant Flow Adjust dial allows operators to tune centrifugal force in real time as soil resistance changes through the drive depth.

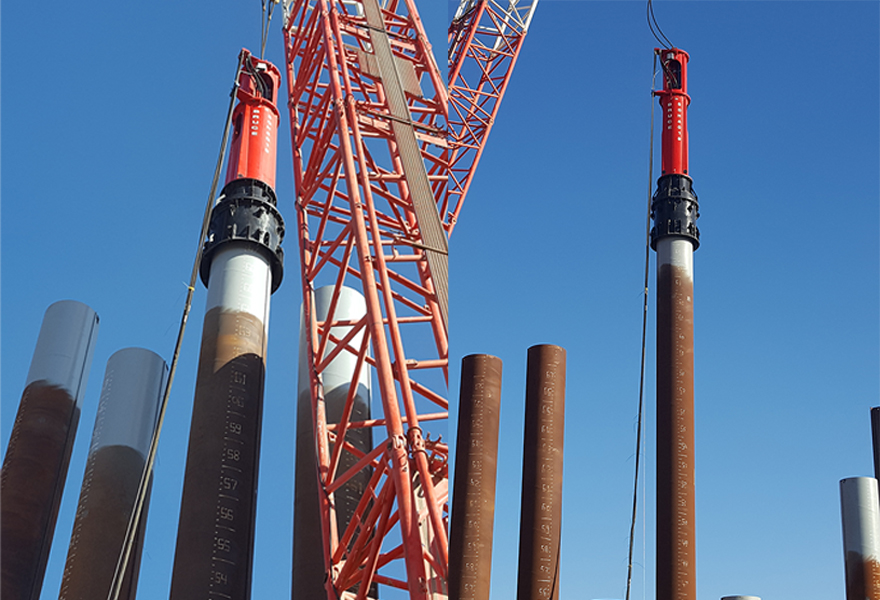

In contrast, the hydraulic impact hammer utilizes percussive kinetic energy transfer. A heavy internal ram is accelerated via hydraulic pressure to strike an anvil — sending a high-magnitude stress wave down the pile. This discrete impulse provides the necessary force to overcome the high shear strength of dense clays and hard rock. The impact energy must be mathematically calculated to ensure the force is sufficient to displace the soil without exceeding the yield strength of the pile material. The BRUCE IEA (Impact Energy Analysis) System records real-time energy at every blow — providing the digital data trail required for structural sign-off. Field measurements on SGH-1015 and SGH-1415 confirmed energy transfer rates of up to 90%.

2. The 7 Key Engineering Differences

Difference 1 — Core Mechanics

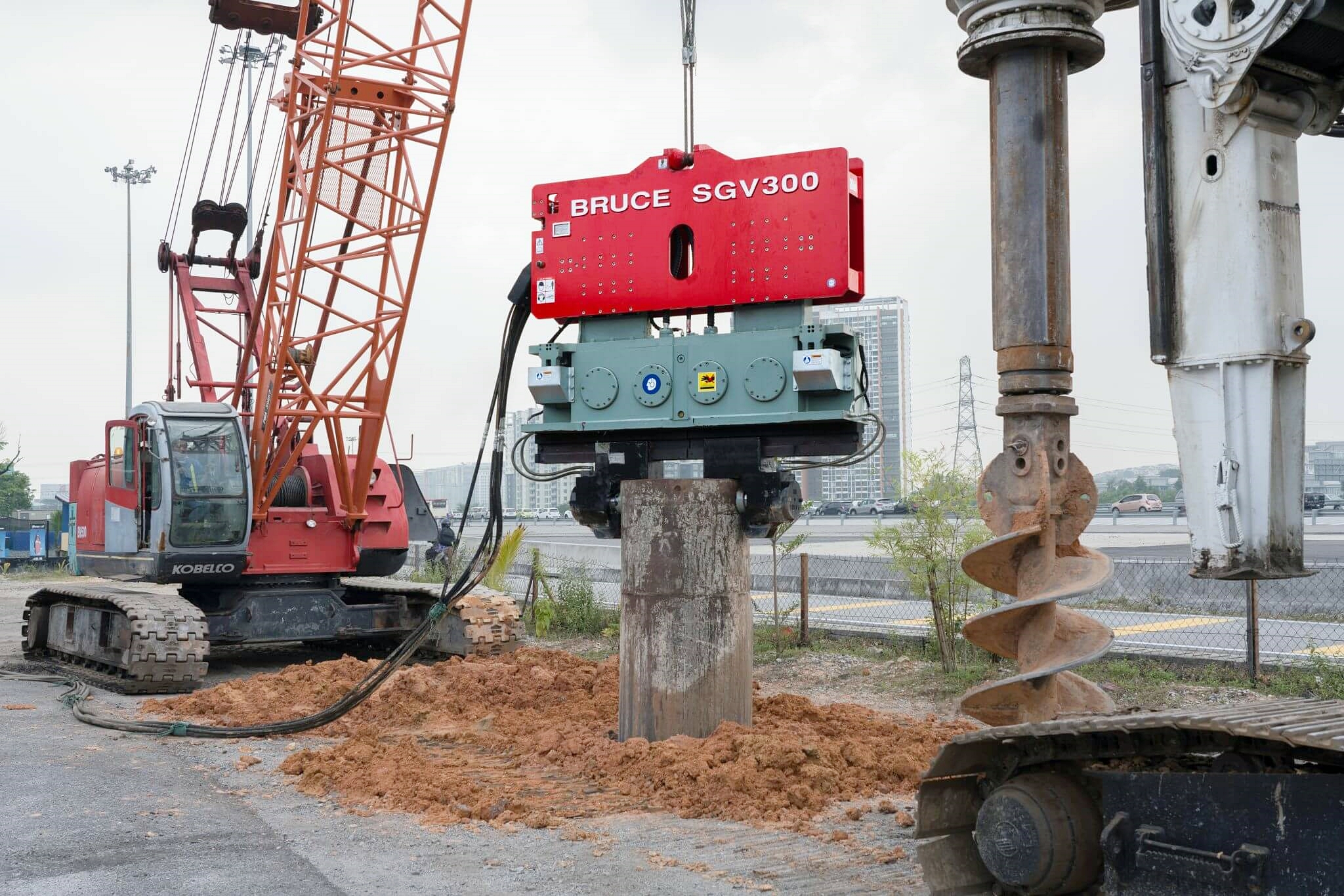

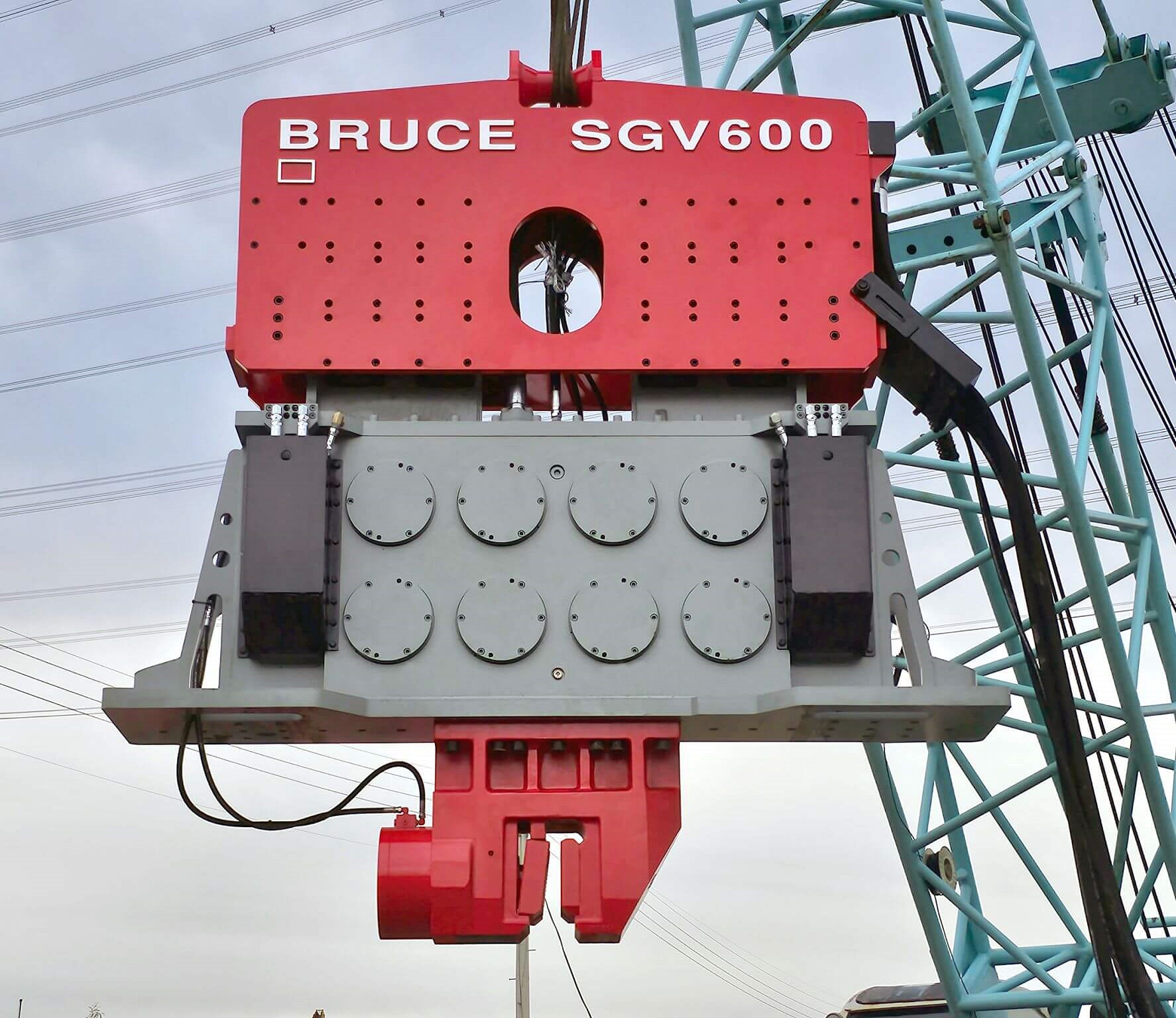

The SGV vibratory hammer uses balanced double-side eccentric weights rotating in opposite directions — generating pure vertical centrifugal force (510 kN to 4,610 kN across the SGV series). The SGH impact hammer accelerates a ram via hydraulic pressure — covering 8.4 ton.m to 89.3 ton.m standard across the SGH series.

Difference 2 — Target Geologies

Vibratory hammers excel in granular soils where liquefaction reduces skin friction to near zero — allowing the pile to sink under its own weight. Impact hammers are required for dense clays, hardpan, and bedrock where discrete high-energy strikes overcome cohesive shear strength. The two systems are complementary — often used in sequence on the same project, as demonstrated on the Incheon Great Bridge (Korea) where a vibratory hammer completed initial driving and the BRUCE SGH-3015 completed final set at 45m depth.

Difference 3 — Environmental Noise

BRUCE SGV vibratory hammers produce a continuous harmonic vibration — significantly lower impact noise than diesel or hydraulic percussive systems. The elastomer suppressor isolates the crane from gearbox vibration. For SGH impact models, the optional Silence Cap Housing Kit reduces noise for urban deployments. Both systems produce no smoke — directly supporting permit requirements under BS 5228 (UK) and OSHA noise standards.

Difference 4 — Extraction Capability

BRUCE SGV vibratory hammers provide maximum line pull from 25 tons (SGV-80) to 180 tons (SGV-2000) — enabling smooth pile extraction for temporary earth retention systems and cofferdams. Impact hammers are designed for downward driving only and are not suitable for extraction.

Difference 5 — Bearing Capacity Verification

Vibratory methods liquefy soil — meaning end-bearing cannot be measured during driving. Final bearing verification requires a hydraulic impact hammer. The BRUCE IEA System records energy at every blow — adopted as standard by the Hong Kong Housing Government. This data supports ASTM D4945 dynamic pile monitoring requirements on federally certified infrastructure.

Difference 6 — Frequency and Energy Control

BRUCE SGV crane-suspended models operate at 1,380 to 2,000 vpm. Excavator-mounted SGV models reach up to 3,300 vpm (SGV-80E). The Remote Control Pendant Flow Adjust dial allows real-time centrifugal force tuning. BRUCE SGH impact hammers allow ram stroke adjustment from 200mm to maximum via Remote Control Box — from the rig cabin or at long distance.

Difference 7 — Carrier Integration

BRUCE SGV excavator-mounted models (SGV-40, SGV-60, SGV-80E) connect directly to the host machine's hydraulic circuit — no separate power pack required. Oil flow requirement: 210–350 lpm. BRUCE SGH base mount hammers also connect directly to excavator hydraulics. Crane-suspended SGV models and crane-mounted SGH models require a matched PQ-V series power pack (PQ-200V to PQ-1600V).

3. Strategic Comparison — Performance Benchmarks

Engineering Metric	Vibratory Hammer (SGV Series)	Impact Hammer (SGH Series)
Core Mechanics	Harmonic soil liquefaction — balanced eccentric weights cancel horizontal force	Percussive kinetic transfer — ram accelerated via hydraulic pressure
Target Geologies	Sands, silts, and soft clays — granular non-cohesive soils	Bedrock, hardpan, dense till, and cohesive clays
Frequency / Energy Range	1,380–2,000 vpm (crane). Up to 3,300 vpm (excavator). CF: 510–4,610 kN	8.4 ton.m (SGH-0712) to 89.3 ton.m (SGH-4719). Stroke 200mm to max
Extraction Capability	Standard feature — line pull 25t (SGV-80) to 180t (SGV-2000)	Designed for downward driving only — extraction not applicable
Bearing Verification	Not applicable — soil liquefaction prevents end-bearing measurement	Required for structural certification — BRUCE IEA System records energy at every blow
Noise Profile	Low — continuous harmonic hum. Elastomer suppressor isolates crane	Reduced vs diesel — no smoke. Optional Silence Cap Housing Kit
Carrier Integration	Excavator direct (no power pack) or crane + PQ-V power pack	Base mount (excavator direct) or crane/leader + PQ series power pack
