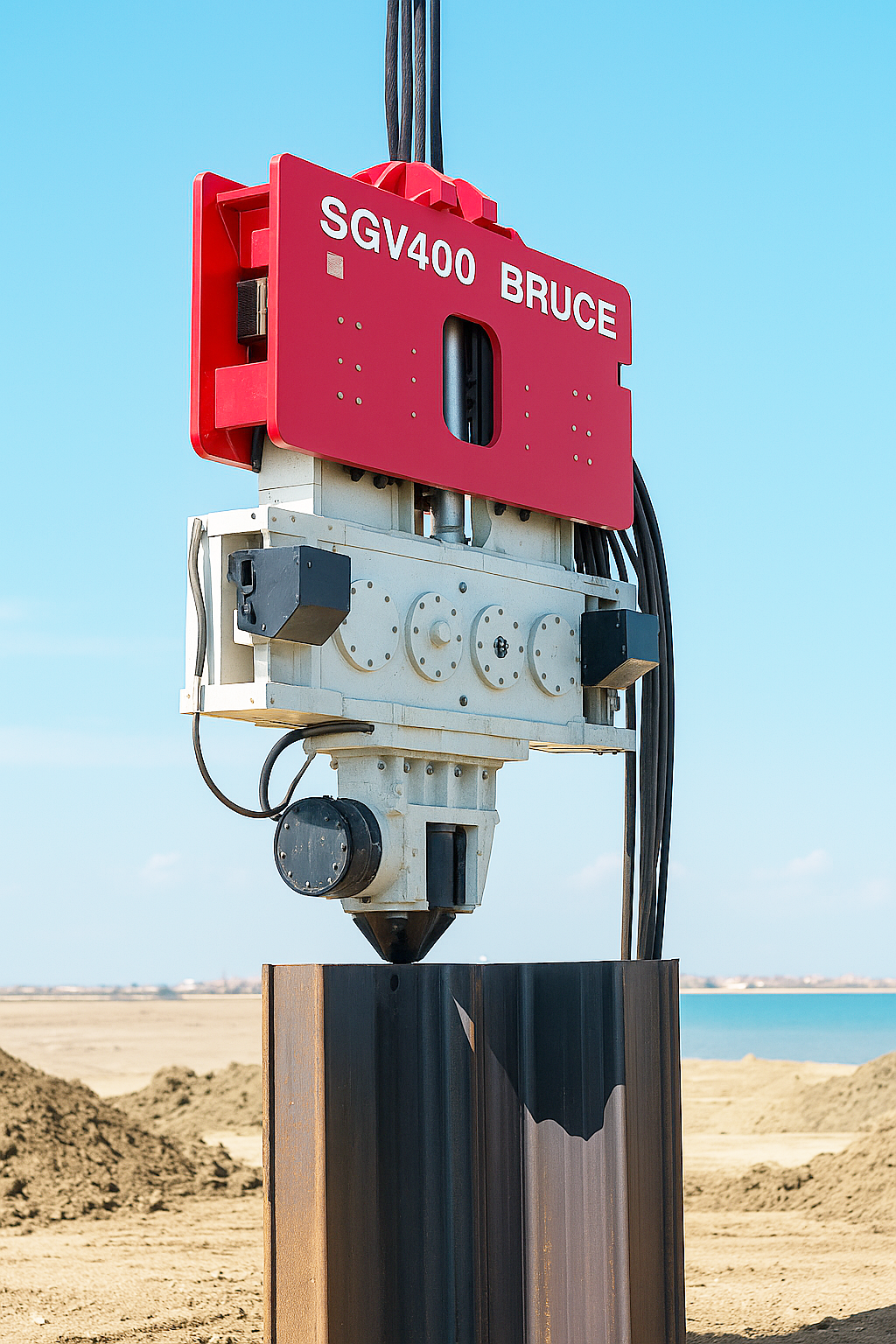

Vibratory Hammer for Sheet Piles – Interlocks & Alignment
JH KIM
view : 249
BRUCE Piling Equipment · Sheet pile installation
Keep the wall aligned as the sheets advance
A vibratory hammer for sheet piles must suit the pile section, ground conditions and installation arrangement. A high force rating alone does not establish that the wall will remain aligned, the interlocks will stay engaged or the specified sealing system will perform.
For U.S. marine works, cofferdams and retaining walls, connect the equipment proposal to the wall drawings and inspection plan. Start with the BRUCE SGV specifications, then resolve the pile interface and construction sequence.
Define what a satisfactory installation must demonstrate
A pile reaching its target elevation answers only one part of the construction review. Agree how the team will document each of these outcomes before production begins.
01 · Depth
Reach the specified position
Identify the required toe and top elevations, survey datum and any separate bearing-pile acceptance requirements.
02 · Geometry
Maintain the wall layout
Define the alignment, inclination and closure checks, including the project’s tolerances and who reviews deviations.
03 · Joints
Document interlock condition
Specify the inspection or detection method and the evidence needed where joint continuity or water exclusion is critical.
Keep these acceptance questions separate from machine ratings. A hammer specification describes the equipment; the project documents define the finished wall requirements.
Check the sheet pile, clamp and guide arrangement together
“Z-pile” or a nominal section name is not a complete interface specification. Send a section drawing and identify whether the delivered element is a single sheet or a connected pair.
Scroll sideways on smaller screens. Record the document revision used for each check.
| Interface | Information to share | Question to resolve |
|---|---|---|
| Pile section and delivery form | Profile drawing, length, steel thickness at the grip, mass and single/pair configuration. | Where will the jaws engage, and does the proposed arrangement fit that exact element? |
| Pile head and jaws | Head detail, accessible grip area, jaw condition and the clamp supplier’s engagement requirements. | Can the required contact be achieved without interfering with the section or its connections? |
| Interlocks and sealing | Interlock type, delivered condition and any specified sealing product and installation instructions. | Are the preparation, threading and driving requirements compatible? |
| Guides and handling | Guide arrangement, wall geometry, threading clearance and carrier configuration. | Can the proposed sequence be carried out while maintaining the specified checks? |
BRUCE lists universal single clamps for sheet piles and H-beams, and a separate double-clamp arrangement for casing. Confirm the proposed clamp against the actual profile; a casing-clamp photograph is not evidence of sheet-pile compatibility. See the published clamp features.
Choose a driving sequence around geometry and ground conditions
ArcelorMittal’s installation guidance distinguishes three common arrangements. The choice belongs in the project method statement.
Panel driving
A group of sheets is erected within guides and advanced in a planned sequence. It supports control of leaning and tolerances, with additional handling and threading demands.
Panel driving with staggered advancement
The panel is advanced with specified differences between sheet depths. This can be considered for difficult driving conditions; the sequence and any toe reinforcement need project-specific selection.
Pitch and drive
Each element is threaded and driven to its final depth before the next. It can simplify the cycle where ground conditions, pile length and tolerance requirements suit the method.
Record the observation before deciding on the cause
Slow penetration does not by itself identify an undersized hammer. The installation review should distinguish equipment behavior, pile geometry and ground response. The examples below are prompts for investigation, not fault diagnoses.
| Observation | Record now | Question for the responsible team |
|---|---|---|
| Advance slows at a particular depth | Pile ID, depth, time, machine readings and whether neighboring sheets show the same change. | Does the pattern correspond to the ground information, equipment condition or an isolated obstruction? |
| Alignment readings change | Measured direction, survey reference, guide position and the sequence completed. | Is the deviation within the project’s review criteria, and what inspection is needed before proceeding? |
| Possible joint damage or separation | Location, visible evidence and any interlock detection result. | How will the extent be established and the repair or replacement decision documented? |
ArcelorMittal’s installation manual addresses interlock protection, detection, sealing and damage. Those topics require their own checks; increasing hammer output does not verify joint integrity. Use the specified stop-and-review criteria for the equipment and project.
Worked example: a small inclination over a long sheet
Illustrative geometry · Not a construction tolerance
Assume a straight sheet with a vertical extent of 18 m (about 59 ft) and a uniform horizontal-to-vertical inclination of 0.5%.
Horizontal offset = 18 m × 0.005 = 0.09 m
90 mm · approximately 3.5 in
This is a geometric calculation, not a BRUCE field result, permitted deviation or prediction of a buried pile’s position. The project designer specifies the applicable tolerances.
The example shows why a small visible inclination deserves a defined measurement method. Real sheets can also bend or twist, so an assumed straight line cannot establish their buried geometry. Likewise, a satisfactory reading at the top does not prove that an interlock remains engaged below ground.
For a useful record, identify the observation point, datum, direction and measurement method. “Looks vertical” leaves the next reviewer without a value to compare.
For marine walls, separate installation from water-control design
Interlock engagement and water exclusion are related, but they are not the same acceptance question. A sealing system may be specified, and its compatibility and installation requirements need review. The wall, supports and water-control arrangements remain part of the project design.
Include the working water levels, access arrangement, pile-head elevation and proposed position of the hammer in the equipment inquiry. Working from a barge does not establish that a particular hammer configuration can be submerged. Obtain written confirmation for the proposed equipment exposure and arrangement.
Use the companion vibro hammer project-planning guide to organize the trial, records and handover responsibilities.
Sheet pile installation questions
Does more centrifugal force keep sheet piles straight?
Force is one equipment parameter. It does not replace guides, a suitable sequence or survey checks. Review the complete installation arrangement when alignment changes.
Can I lubricate every interlock in the same way?
No. Follow the pile and sealing-system supplier’s instructions for the exact section. ArcelorMittal specifically cautions against applying the usual lubricant or sealant approach to flat sheet piles where interlock tensile strength is essential.
Does reaching the required depth prove the wall is acceptable?
No. Check the project’s geometry, joint, structural and water-control requirements separately. Where piles also carry axial loads, follow the specified capacity-verification plan.
Prepare a useful equipment inquiry
Send the pile detail with the installation constraints
For a BRUCE SGV proposal, include the profile drawing, single/pair configuration, length and mass; target depth and ground information; proposed crane or carrier; and guide, threading and water-level constraints.
Suggested request: “Please review the proposed hammer, clamp and power pack against the attached sheet pile detail. Identify the assumptions, interface dimensions and additional site information needed for your equipment proposal.”
Attach the project’s relevant tolerance and sealing requirements so the equipment discussion uses the same basis as the construction team.
Sources and publication scope
Published by BRUCE Piling Equipment (SHINSEGAE POWERQUIP). This manufacturer’s guide supports equipment discussions. The project engineer’s design, approved method statement and equipment instructions govern the actual work.
- ArcelorMittal — installation methods: panel, staggered and pitch-and-drive arrangements.
- ArcelorMittal — Installation of Steel Sheet Piles (PDF): interlock protection, detection, sealing and damage; sections 7.5, 9.7, 9.15 and 12.2.
- BRUCE SGV specifications and product features: published equipment and clamp information.
The numerical example is illustrative. References to U.S. projects describe the intended application, not agency certification or a documented project result.
