BRUCE Vibro Hammer SGV-1000 in the marine bridge construction
BRUCE PILING
view : 627
A marine Bridge construction story for Oil & Gas transportation has kicked off
The area where BRUCE SGV-1000 Vibro Hammer pulled in, follows the natural contours of the coastline and is facing
a gigantic island that seemed merely a no long way feeling like within a reachable distance.
The client is seeking for the very lucrative and successful project this year to transport Oil & Gas that they produce through a new marine bridges.
Vibro Hammer’s standard function test prior to upcoming Pile Drives
The BRUCE Vibro Hammer SGV-1000 has conducted its Vibratory Hammer functional test oriented mainly for Vibratory Hammer and Power Pack aimed at Clamping work and demonstrating its driving forces capability that could be making for sure of penetration Into the soil and also included Pressure, Required Oil Flow and Hydraulic plus Electrical sorts test that was tested.
Key Performance Specifications:
- • Eccentric Moment: 110 kg·m / 1,078 N·m
- • Centrifugal Force: 310 tons / 3,045 kN
- • Maximum Line Pull: 130 tons / 1,275 kN
- • Engine Power: 1000 HP / 746 kW

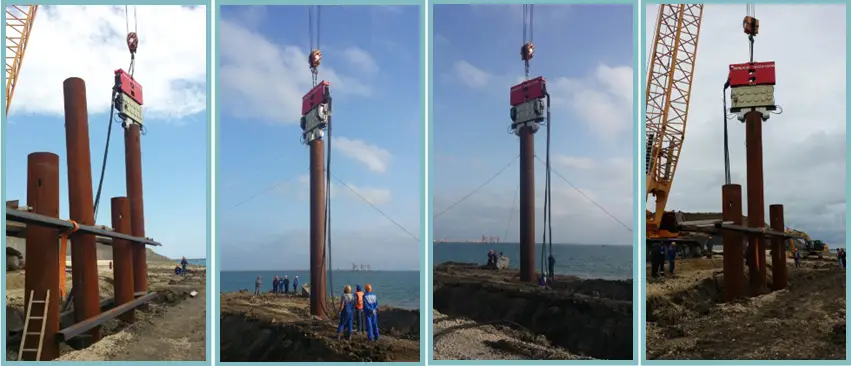

Tube Piles mounted to support its structure as an anchor Piles

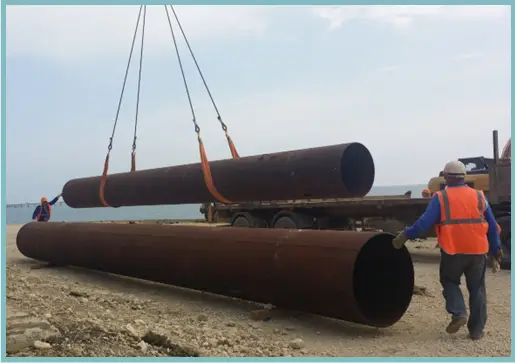

The Tube Piles with a diameter 1020 were moved and then one was mounted on a designated spot where the soils already had been excavated to be driven as an anchor Pile.
The Piles for the first stage of Vibro Hammer operation are corn- shaped on the bottom with not a hollow type of Piles requiring a rigid foundation for the whole structure
BRUCE Vibro Hammer SGV-1000 that is an optimum compatible Pile Driving by Bruce vibratory hammer

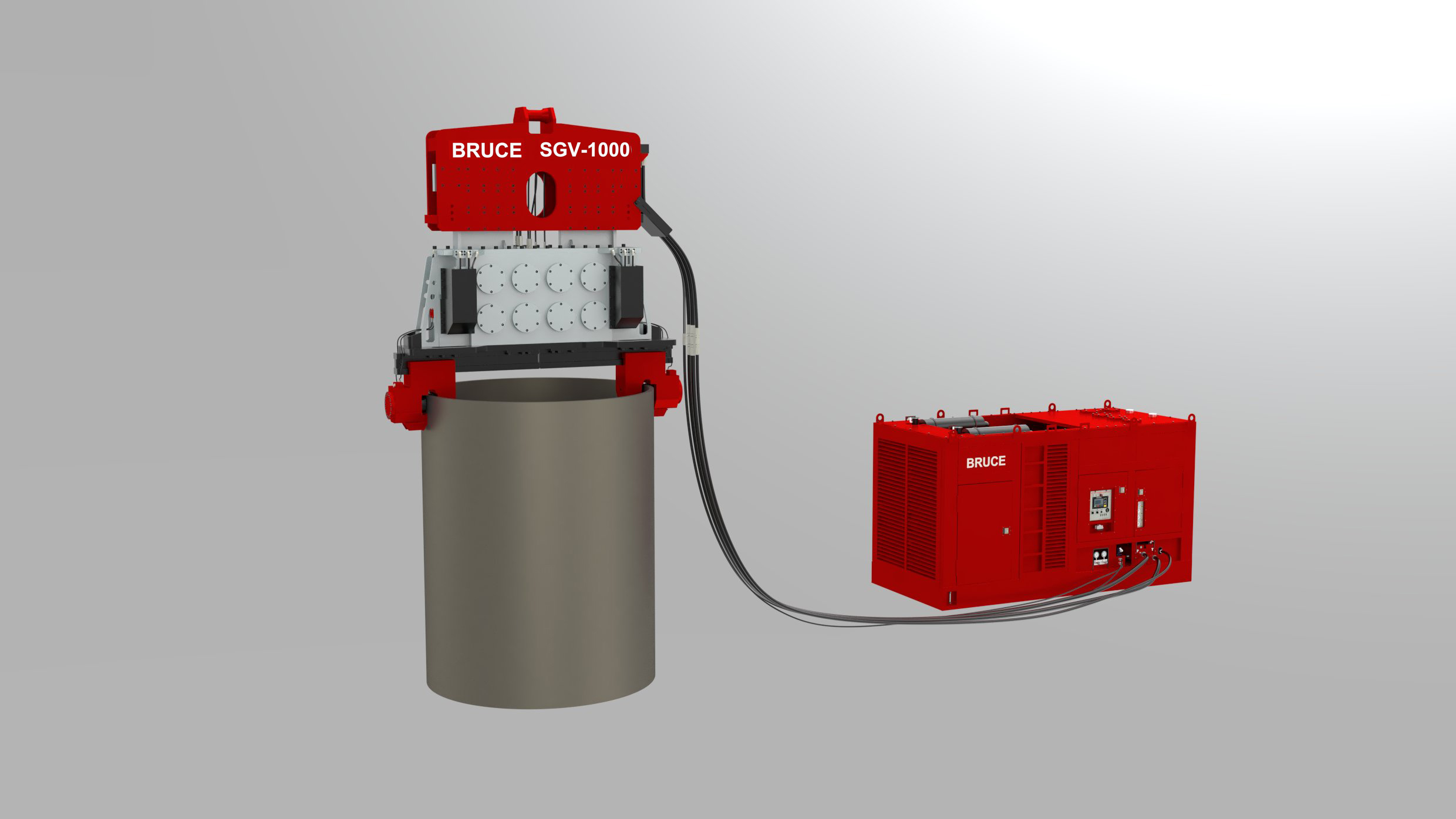

BRUCE Vibro Hammer SGV-1000 was provided with a two different Clamps either of which were Sheet Pile and Tube Pile that the most commonly used in pile driving into the ground with a lot easy and convenient way of altering Clamps depending on pile sorts to make sure of gaining enough Clamping Power against piles for a lifetime driving and extraction.
