What is the best vibro hammer for deep foundation piling?

The best vibro hammer for deep foundation piling depends on pile type, soil density, required depth, and crane capacity. High-performance hydraulic vibratory hammers are generally preferred for deep piling because they deliver strong centrifugal force, stable operation, and efficient penetration.

How does a vibro hammer compare to a hydraulic hammer for sheet piling?

A vibro hammer drives sheet piles using high-frequency vibration, reducing soil resistance and enabling faster installation with less noise. A hydraulic impact hammer uses repeated blows, making it useful for harder ground but usually slower and more disruptive during construction.

Which vibro hammer should I choose for sandy soil conditions?

For sandy soil conditions, choose a vibro hammer with sufficient centrifugal force, adjustable frequency, and reliable hydraulic power. Sandy ground usually responds well to vibration, so selecting the right hammer size helps achieve faster penetration, stable pile alignment, and efficient extraction.

How does a vibratory hammer work in construction projects?

A vibratory hammer works by generating vertical vibrations through rotating eccentric weights. These vibrations reduce friction between the pile and surrounding soil, allowing the pile to move downward or upward efficiently. It is commonly used for sheet piles, casings, and foundations.

What are the essential safety procedures for operating a vibro hammer?

Essential vibro hammer safety procedures include inspecting hydraulic hoses, clamps, bolts, and lifting connections before operation. Operators should follow load limits, maintain safe distances, use trained personnel, monitor vibration effects, wear protective equipment, and stop immediately if abnormal noise or movement occurs.

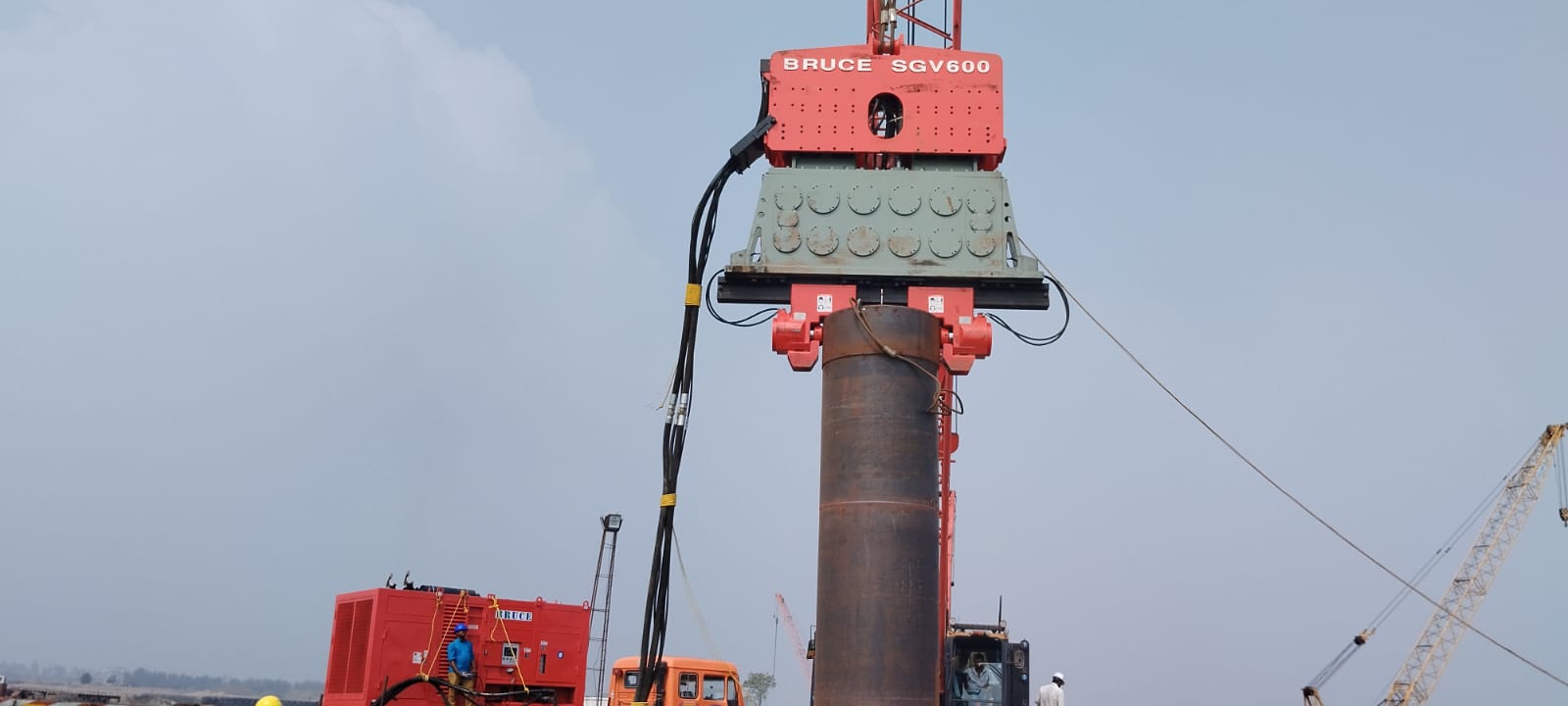

BRUCE Vibro Hammer SGV-600 in Action Powerful Performance at Casing Pile Driving Sites

JH KIM

2025-06-20 04:06:10

Powerful Driving and Extracting Capabilities

Reliable and Durable Performance

User-Friendly Control and Operation

Simple Design and Easy Maintenance

Efficient and Powerful Casing Pile Driving with BRUCE Vibro Hammers

Many contractors are seeking cost-effective methods to drive casing piles deeper into the ground, and the use of vibro hammer equipment is becoming increasingly popular.
The BRUCE Vibro Hammer offers a reliable and powerful solution, capable of driving large-diameter casing piles—such as 2.67m or even 3.0m—with efficiency and precision.

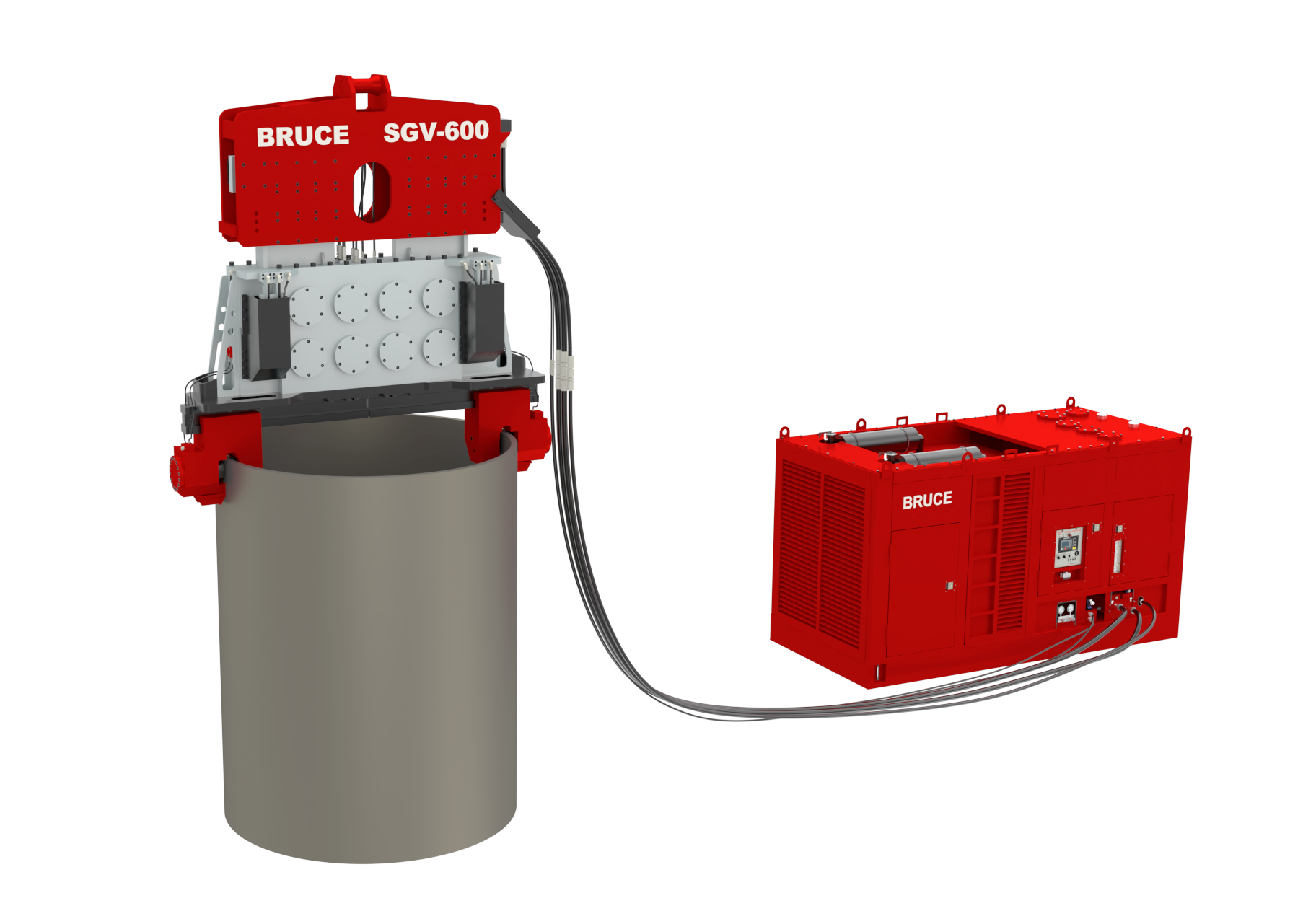

One of the flagship models, the BRUCE SGV-600 Vibratory Hammer, is specifically engineered for deep soil formation and delivers outstanding performance when driving large-diameter casing piles.

Key Performance Specifications:

Outstanding Features of BRUCE Vibro Hammers:

• Superior Drivability: Designed to deliver high power and efficiency, ensuring reliable penetration into deep and challenging soil formations.

• Premium Components: Built with high-quality elastomer rubbers and globally recognized components, including hydraulic motors, pumps, valves, and bearings.

• User-Friendly: Simplified operation and low-maintenance design reduce downtime and enhance productivity on-site.

• Durable Construction: Made with top-grade alloy steel for gears, cylinders, jaws, and clamp bodies—offering long service life and structural integrity.

• Adjustable Frequency:Enables optimal performance across varying soil conditions, from soft to dense layers.

• Hydraulic Auto Locking System: Ensures secure and easy connection of the casing pile clamp to the beam for safe and fast setup.

• Double Check Valve System: Enhances safety by ensuring firm clamping of the casing pile during operation.

• Quick Casing Pile Diameter Adjustment: The clamp-to-beam sliding mechanism allows for fast and easy reconfiguration to accommodate different casing pile sizes.

• Versatility: Compatible with a wide range of pile types, including sheet piles, tubular piles, H-beams, and casing piles, using hydraulic clamps.

BRUCE SGV Series | Casing Pile Technology 2026

BRUCE Vibro Hammer SGV Series: High-Efficiency Casing Pile Driving

The BRUCE SGV Series vibratory hammers represent the global standard for large-scale casing pile driving. Covering centrifugal forces from 510 kN (SGV-80) to 4,610 kN (SGV-2000), the SGV lineup delivers the amplitude required to overcome high ground resistance in diverse soil conditions — including the dense till of the Northeast and the Gulf Coast clays.

All SGV models are available with Casing Pile Clamps featuring hydraulic auto-locking beams — covering 2x40D to 4x160D — for secure engagement with round steel pipe piles across all marine and onshore diameters. The built-in check valve maintains clamping pressure even in case of hose damage — critical during offshore pile driving operations.

SGV Series Real-World Marine Reference The BRUCE SGV-1000 was deployed on a marine bridge construction project for Oil & Gas transportation — driving 1,020mm diameter tube piles with both Sheet Pile and Tube Pile clamps. The BRUCE SGV-200 won the PDCA Project of the Year (USA, 2022). BRUCE has supplied SGV vibratory hammers for port construction, offshore bridge foundations, and oil and gas storage plant piling across more than 80 countries.

Utilizing high-frequency oscillations to induce soil liquefaction, BRUCE SGV technology ensures faster pile driving and smooth extraction — while adhering to strict U.S. EPA and European marine noise and vibration regulations. BRUCE SGV hammers produce no smoke and significantly lower noise than diesel hammers. All hydraulic components are fully compatible with biodegradable hydraulic oils — required for USACE navigable waterway projects and European coastal construction zones.

SGV Series Key Technical Parameters

Parameter	SGV Series Range	Application Benefit
Centrifugal Force	510 kN (SGV-80) — 4,610 kN (SGV-2000)	Matched to pile weight (min. 15x rule) for full soil liquefaction
Eccentric Moment	11.5 kgm (SGV-80) — 220 kgm (SGV-2000)	Remote Control Pendant Flow Adjust — real-time amplitude tuning
Frequency (Crane)	1,380 — 2,000 vpm	Localized energy at pile-soil interface — municipal vibration compliance
Frequency (Excavator)	Up to 3,300 vpm (SGV-80E)	Maximized liquefaction in vibration-sensitive urban environments
Maximum Line Pull	25 tons (SGV-80) — 180 tons (SGV-2000)	Smooth extraction for cofferdam and temporary earth retention reuse
Casing Clamp Range	2x40D — 4x160D (hydraulic auto-lock)	Covers full range of North American and international casing diameters
Power Pack	PQ-200V — PQ-1600V (-30°C to +40°C)	Stable hydraulic performance in all marine climates

The Remote Control Pendant allows operators to adjust centrifugal force in real time via the Flow Adjust dial — matching machine output to actual soil resistance at every depth. The suppressor uses high-grade elastomer rubbers with mechanical stops to prevent over-stretching during extraction — protecting the crane and extending elastomer service life. Field documentation records gear service life exceeding 20 years with alloy steel eccentrics and precision-machined gears.
