What Is a Vibratory Hammer? How Vibro Hammer Work in Modern Pile Driving

In the heavy civil and marine engineering arena, the vibratory hammer has transitioned from an alternative tool to the primary standard for deep foundations. This comprehensive cornerstone guide deconstructs the mechanical physics, operational logic, and global applications that define modern vibro hammer technology.

1. What Is a Vibratory Hammer?

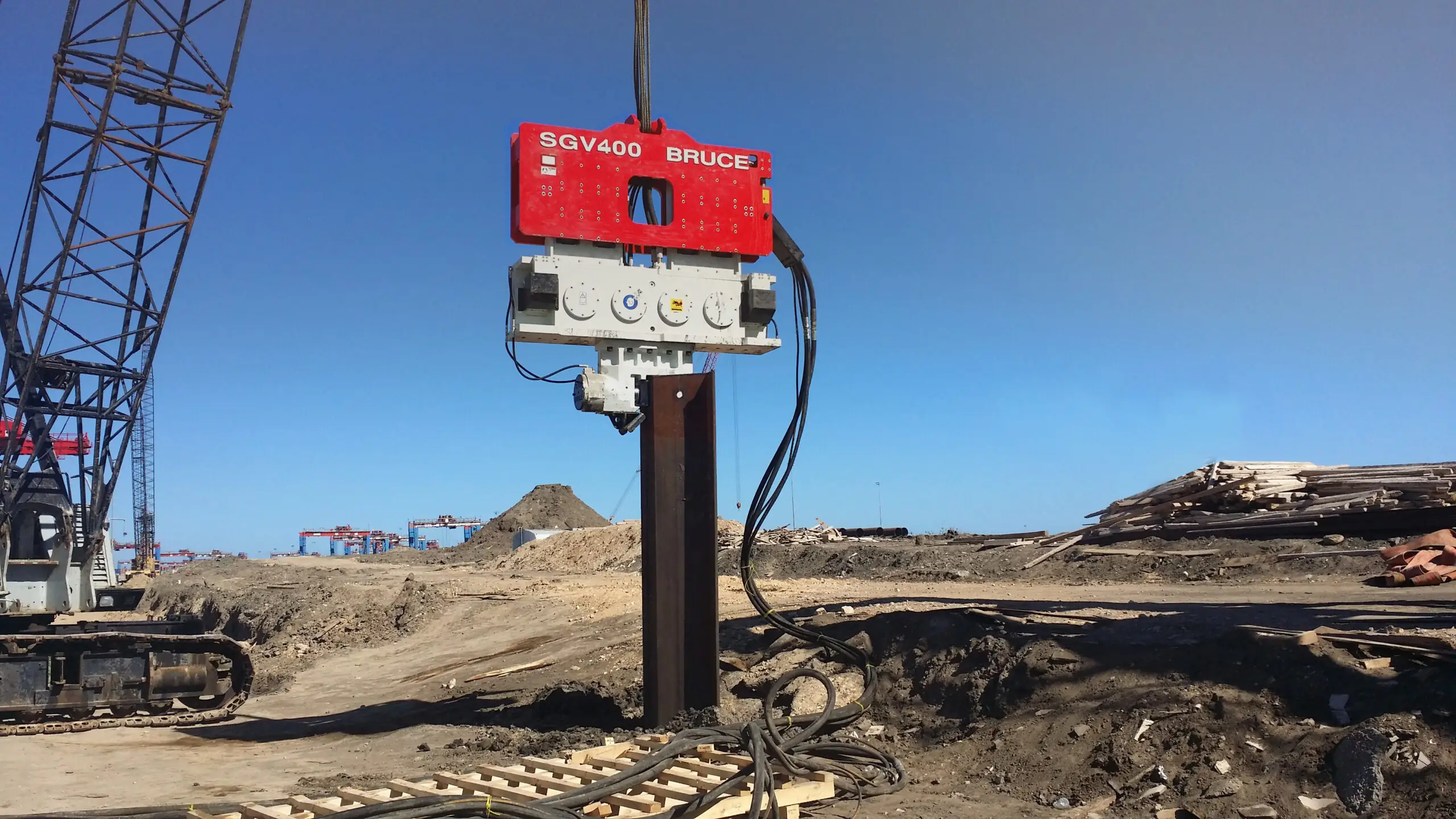

A vibratory hammer (universally referred to on-site as a vibro hammer or vibratory pile driver) is a sophisticated hydraulic system designed to drive and extract structural profiles such as sheet piles, H-beams, and steel casings. Unlike traditional impact hammers that rely on discrete kinetic blows, a vibro hammer uses high-frequency oscillation to alter the physical state of the surrounding ground.

This technology is critical for high-stakes projects where precision and speed are mandatory. Whether it is a massive port expansion in Houston or a noise-restricted urban foundation in London, vibro hammers allow contractors to penetrate dense soils efficiently while maintaining total structural integrity of the pile. For a broader context on foundation methods, see our Introduction to Piling.

BRUCE SGV Series Overview

BRUCE Piling Equipment manufactures the SGV Series vibratory hammers — covering models from SGV-80 to SGV-2000. Centrifugal force range: 510 kN (SGV-80) to 4,610 kN (SGV-2000). Eccentric moment range: 11.5 kgm (SGV-80) to 220 kgm (SGV-2000). Crane-suspended models operate at 1,380 to 2,000 vpm. Excavator-mounted models reach up to 3,300 vpm (SGV-80E). Maximum line pull: 25 tons (SGV-80) to 180 tons (SGV-2000).

2. How Vibro Hammer Work: The Gearbox and Eccentrics

The operational logic of a vibro hammer lies within the "Exciter" (the gearbox). It generates vertical energy through a system of precisely synchronized eccentric rotating weights.

The Principle of Soil Liquefaction As hydraulic motors spin the eccentric weights in opposite directions at high speed, horizontal forces cancel out while vertical forces compound. This vertical energy travels down the pile, exciting soil particles and causing soil liquefaction. This temporarily eliminates the friction between the soil and the pile — allowing the pile to sink smoothly under its own weight and the hammer's bias force. The Remote Control Pendant Flow Adjust dial allows operators to tune centrifugal force in real time as soil resistance changes at every depth. To compare this with impact energy, see our 7 Key Differences Guide.

Suppressor and Vibration Isolation

The BRUCE SGV suppressor assembly uses high-grade elastomer rubbers to mechanically decouple the vibrating gearbox from the crane hook and wire rope. Mechanical stops prevent the elastomers from over-stretching during pile extraction — protecting both the rubber elements and the crane. For excavator-mounted SGV models (SGV-40, SGV-60, SGV-80E), the elastomers provide a minimum of 90% vibration isolation — confirmed on the product page.

Hydraulic Clamping System

BRUCE SGV vibratory hammers are available with Universal Sheet Pile Clamps (60U to 320U) for flat sheet pile profiles, and Casing Pile Clamps with hydraulic auto-locking beams (2x40D to 4x160D) for round pipe piles. The clamp cylinder includes a built-in check valve that maintains clamping pressure even in case of hose damage — preventing pile drop and unplanned stops.

3. Strategic Applications Across Diverse Soils

The versatility of BRUCE vibratory hammers enables them to excel in varied conditions across the globe.

  • Urban Rail & Basements: In cities like Chicago, high-frequency vibro hammers ensure compliance with municipal vibration limits. The BRUCE SGV-40 was deployed at Christchurch Public Hospital adjacent to MRI equipment — with zero vibration complaints. Learn more in our U.S. Market Trend Report.

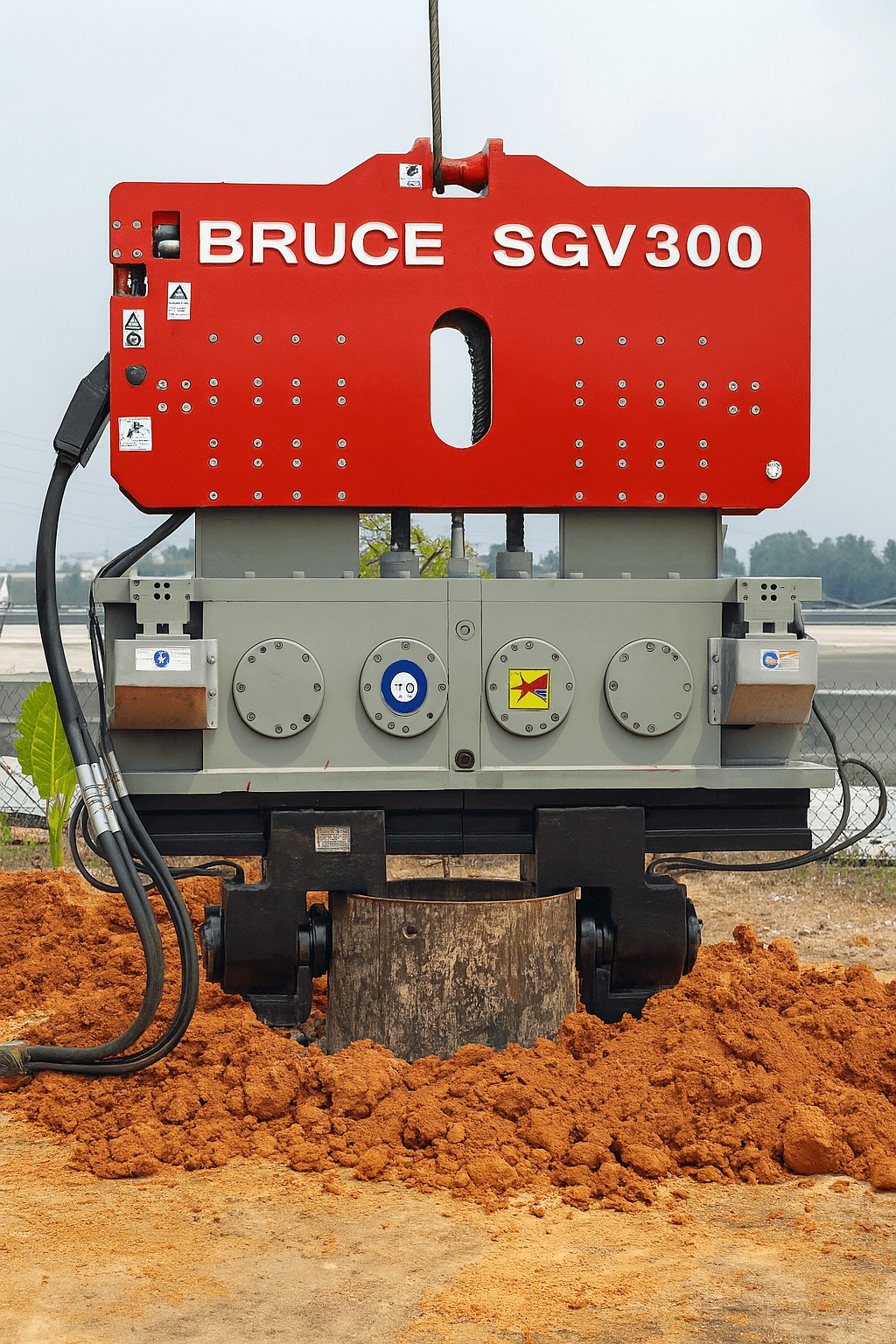

  • Hard Soil Sheet Piling: The BRUCE SGV-300 achieved 20m penetration in hard soil where other vibro hammers stopped at 12m — with 92 tons centrifugal force and PQ-400V 276kW power pack.

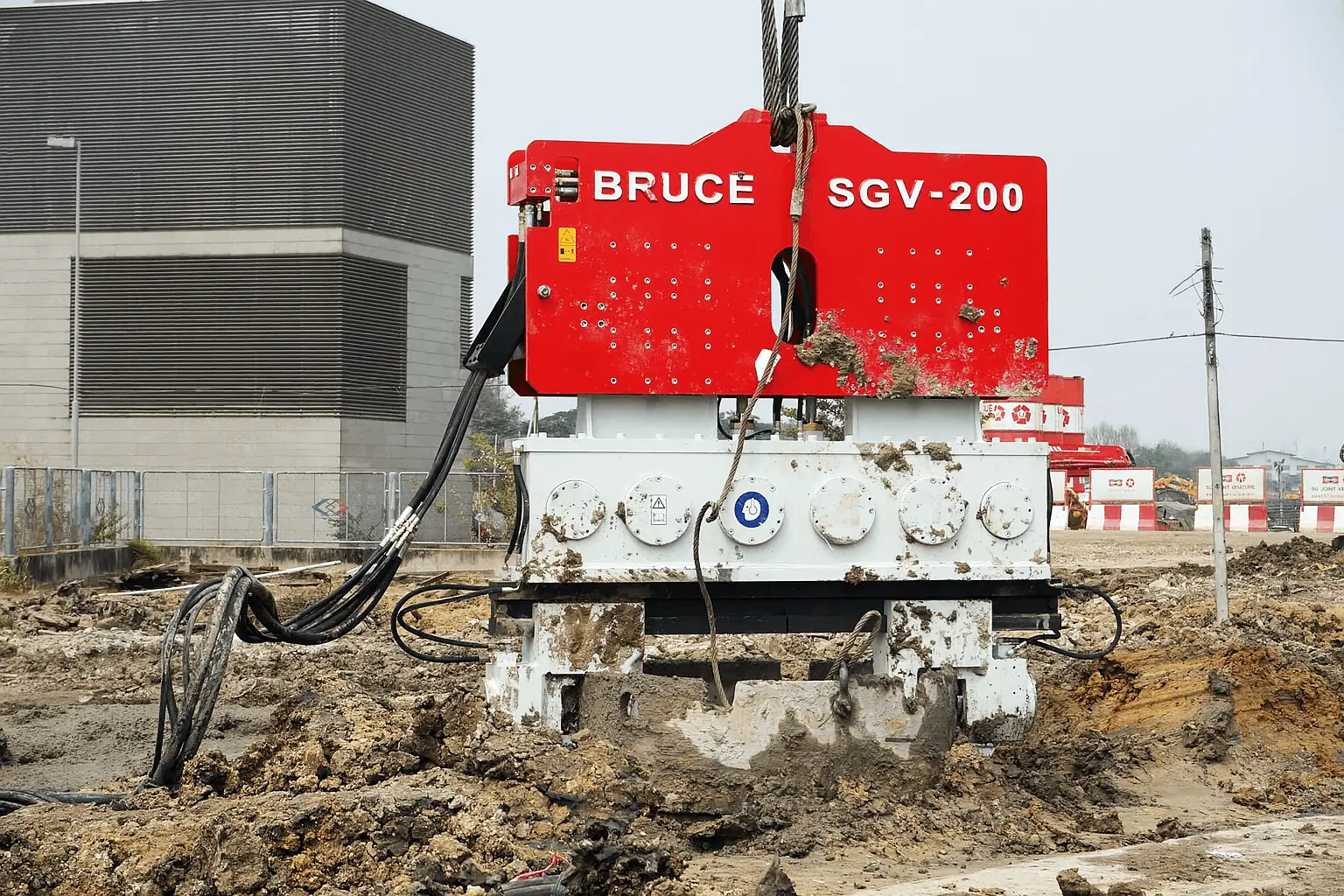

  • Coastal Protection: Indispensable for installing seawalls and harbor jetties in saltwater environments. The BRUCE SGV-200 won the PDCA Project of the Year (USA, 2022). See our European Case Studies.
  • Offshore Monopiles: Used in the initial pitching phase of wind turbine foundations. The BRUCE SGV-1000 drove 1,020mm tube piles on a marine Oil & Gas bridge project. Discover more in the United Kingdom's offshore projects.

4. Technical Operation: A Step-by-Step Site Protocol

Step 1

Analyze Geotechnical Data

Match the eccentric moment and centrifugal force of the hammer to the specific soil profile. The selection rule: centrifugal force should be at least 15 times the pile weight. Consult our Soil Condition Selection Guide.

Step 2

Configure Power Pack

Match the BRUCE PQ-V series power pack to the SGV model. PQ-V series covers PQ-200V to PQ-1600V. All PQ-V power packs operate from -30°C to above 40°C and are fully compatible with biodegradable hydraulic oils. Verify the Hydraulic Power Pack configuration.

Step 3

Execute Hydraulic Clamping

Secure the hydraulic auto-locking clamp to the pile. The built-in check valve maintains clamping pressure even in case of hose damage. Learn about advanced vibro hammer features for secure clamping.

Step 4

Monitor Penetration Remotely

Adjust centrifugal force in real time via the Remote Control Pendant Flow Adjust dial — from the rig cabin or at long distance. The pendant also includes digital blow counter and emergency stop. For safety protocols, review our Efficiency and Safety Guide.

5. Piling Industry Resource Hub

Engineering Knowledge Base

Global Authority & Community

6. Frequently Asked Questions

What exactly is a vibratory hammer?
"A vibratory hammer is a hydraulic piling system that uses vertical oscillation to induce soil liquefaction — allowing piles to sink or be extracted smoothly."

It serves as an efficient, low-noise alternative to impact driving — specifically designed for rapid installation and extraction of steel sheets, pipe casings, and H-beams in varied soil geologies. BRUCE SGV series covers centrifugal forces from 510 kN to 4,610 kN — giving engineers a precisely matched tool for every soil condition and pile dimension.

How does a vibro hammer work internally?
"Inside the exciter, hydraulic motors spin eccentric weights in synchronized opposition to create vertical amplitude while neutralizing lateral forces."

This oscillation is transferred to the pile via high-pressure hydraulic clamps. As the vibration enters the earth, it breaks the static friction of soil particles — making the ground behave like a fluid (liquefaction). The Remote Control Pendant Flow Adjust dial allows operators to tune the centrifugal force in real time, matching machine output to actual soil resistance at every depth.

Is it better than a Hydraulic Impact Hammer?
"The choice depends entirely on your specific soil conditions and environmental constraints."

While vibratory hammers excel in granular soils and noise-sensitive urban areas, impact hammers are required for hard rock strata and final bearing verification. The two systems are often used in sequence on the same project — as demonstrated on the Incheon Great Bridge (Korea) where a vibratory hammer performed initial driving and the BRUCE SGH-3015 completed final set at 45m depth. Compare the two technologies in depth at our Hydraulic Impact Hammer Hub.

Optimize Your Infrastructure Fleet with Direct Factory Engineering

Ready to optimize your piling project? Check out our 2026 Vibro Hammer Price List or Contact Us for a customized quote today.
